Berkeley C Series Lawn/Irrigation Pumps Buyers Guide & Review
The Berkeley C series pumps are compact, horizontal, single stage centrifugal pumps designed for general home or farm irrigation, air conditioning and refrigeration. Each pump is comprised of a gray cast iron body/base, a cast iron bracket, a silicon bronze impeller, and a threaded stainless steel shaft.
Readily accessible bolts in a back pull-out design allow for easy maintenance without disturbing the piping.
Features:
- Carefully manufactured with materials best suited for water pump applications to ensure long life and dependability
- Sturdy cast iron bracket houses seal and maintains positive alignment between motor and volute case
- Volute case with NPT tapped openings for suction and discharge
- Standard discharge position is horizontal
- Volute may be rotated for vertical-up discharge
- Enclosed multi-vane silicon bronze impeller is balanced to eliminate vibration and provide smooth, quiet operation
- Impeller is threaded on motor shaft for positive alignment
- Self-adjusting, water-cooled, mechanical shaft seal prevents leakage and eliminates need for drain piping
- Run-in and periodic adjustment is not required
- Stainless steel motor shaft is threaded for direct mounting of impeller. Shaft extension to impeller is short to increase shaft rigidity and to extend bearing life
- Heavy-duty and flange-mounted motor designed for continuous 3,600 RPM operation.
- Two ball bearings are permanently lubricated, eliminating the need for re-lubrication service. Open, drip-proof enclosures are standard.
| BERKELEY C SERIES LAWN & IRRIGATION PUMPS |

Model Comparison Chart
| Model |
Discharge |
Suction |
HP |
Voltage |
Phase |
GPM |
Approx. Wt. |
| B59213S |
1-1/2" |
2" |
3 |
208/230/460 |
3 |
110 |
56 lbs. |
| B53617S |
2" |
2-1/2" |
3 |
208/230/460 |
3 |
170 |
58 lbs. |
| B53603S |
1-1/4" |
1-1/2" |
3 |
208/230/460 |
3 |
70 |
55 lbs. |
| B53602S |
1-1/4" |
1-1/2" |
3 |
230 |
1 |
70 |
55 lbs. |
| B53616S |
1-1/4" |
1-1/2" |
3 |
230 |
1 |
70 |
58 lbs. |

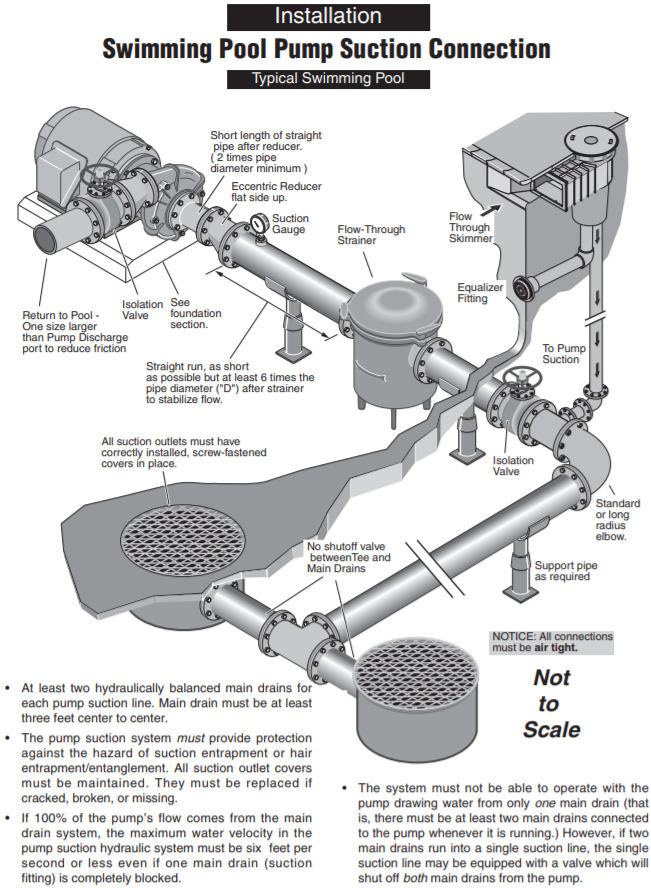

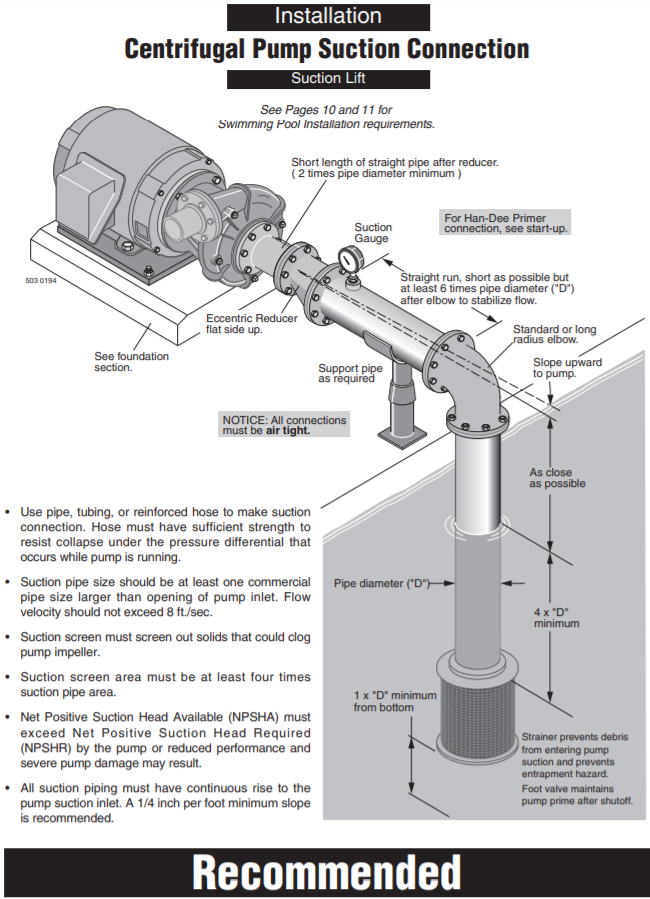

| RECOMMENDED INSTALLATIONS |

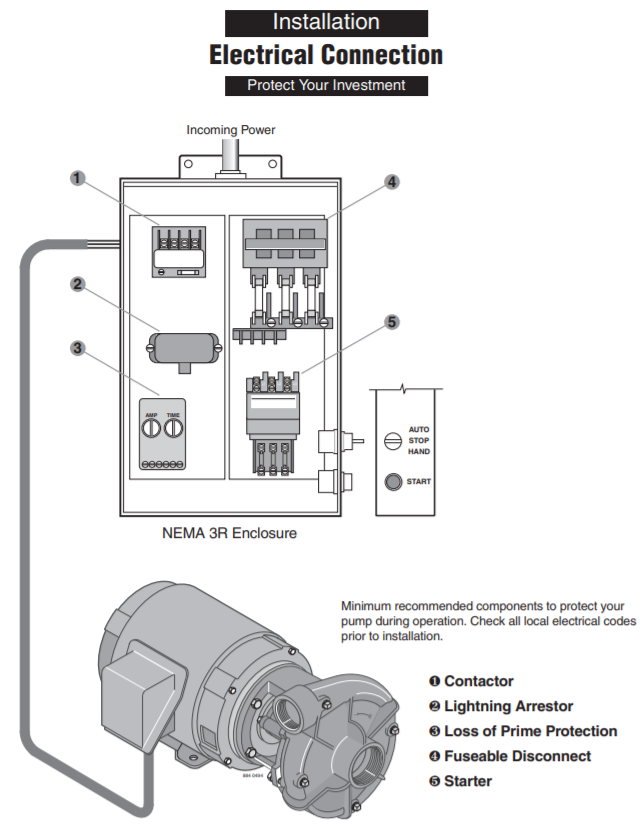

| ELECTRICAL CONNECTION INSTALLATION |

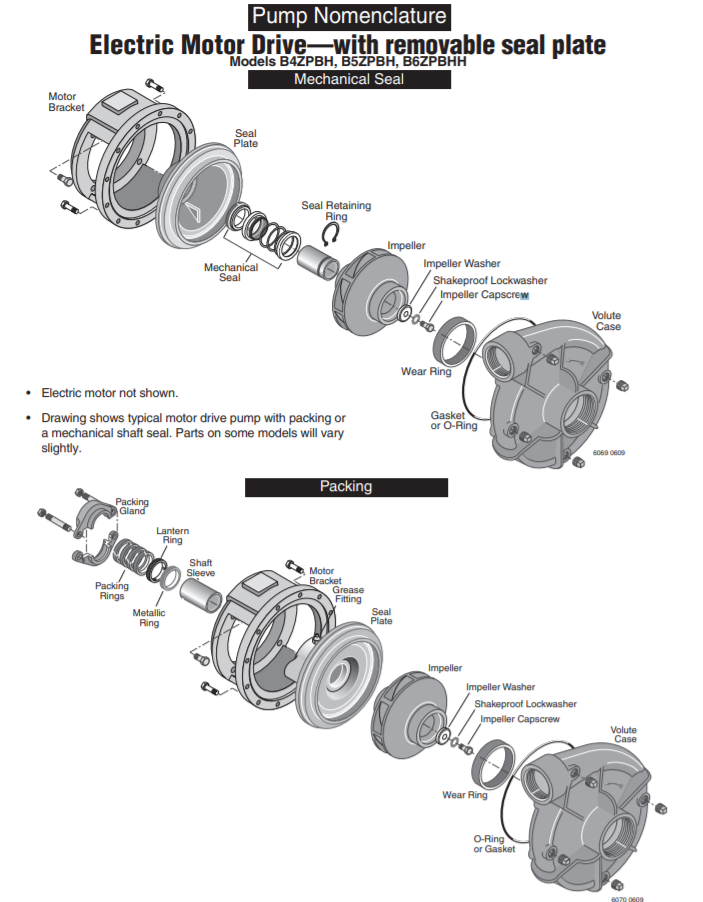

| BERKELEY GENERAL NOMENCLATURE INFORMATION |

| TROUBLESHOOTING CHECKLIST |
