Berkeley "B" SAE Irrigation Mount Lawn & Irrigation Pumps Buyers Guide & Review
The Berkeley standard, in full-performance reliability, SAE end suction pumps are suitable for any application requiring the convenience of an internal combustion engine as a power source. Its state-of-the-art design delivers 20,000 hours of bearing life, one of the industry's longest life cycles.
Features
- Type “B” SAE mount – for flywheel housings
- Cast iron impeller in mechanical shaft seal configuration. Replaceable stainless steel shaft sleeve is standard, providing maximum corrosion resistance while minimizing shaft wear.
- Volute case, back pull-out design, allows easy removal and repair without disturbing piping connections, and completely exposes the impeller for flushing or service
- Heavy-duty power frame is designed for durability delivering in excess of 20,000 hours of bearing life. Includes large shaft and grease-for-life sealed bearings to handle the toughest conditions with less maintenance and more reliability
- Dry-run seal option available
- Motor is not included
Please see "SAE Housing and Coupling Selection" manual above to select the proper engine coupler and housing.
| BERKELEY "B" IRRIGATION SAE MOUNT |
Model Comparison Chart
| Model | Discharge | Suction | Impeller | Seal |
| B85713 | 4" Flanged | 5" Flanged | 9" Cast Iron | Packing Seal |
| B85714 | 4" Flanged | 5" Flanged | 9" Cast Iron | Mechanical Seal |
| B85715 | 5" Flanged | 6" Flanged | 9" Cast Iron | Packing Seal |
| B85716 | 5" Flanged | 6" Flanged | 9" Cast Iron | Mechanical Seal |
| B85717 | 5" Flanged | 6" Flanged | 9" Cast Iron | Packing Seal |
| B85718 | 6" Flanged | 8" Flanged | 9" Cast Iron | Mechanical Seal |
| B85798 | 8" Flanged | 10" Flanged | 13" Cast Iron | Packing Seal |
| B85799 | 8" Flanged | 10" Flanged | 13" Cast Iron | Mechanical Seal |
| B85796 | 10" Flanged | 12" Flanged | 13" Cast Iron | Packing Seal |
| B85797 | 10" Flanged | 12" Flanged | 13" Cast Iron | Mechanical Seal |
| PUMP PERFORMANCE |

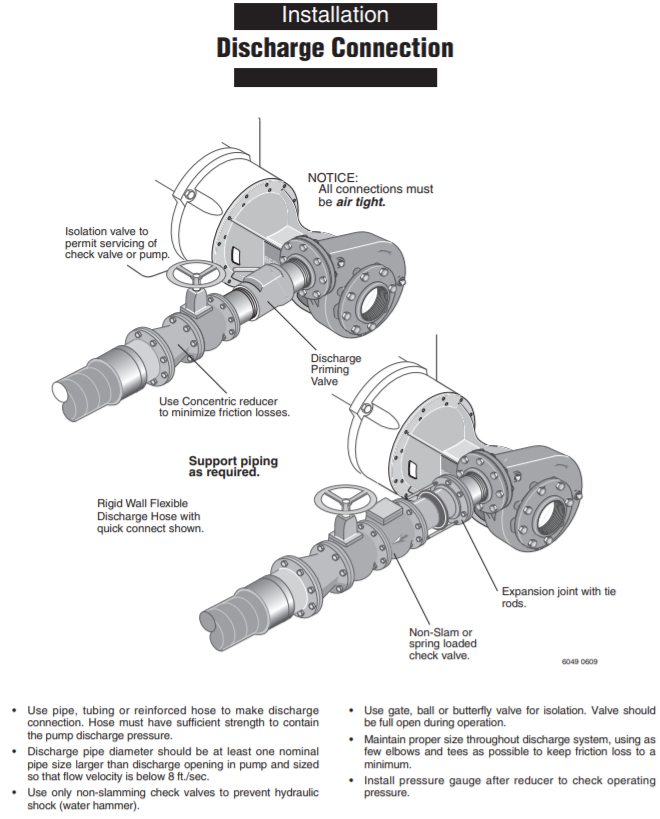

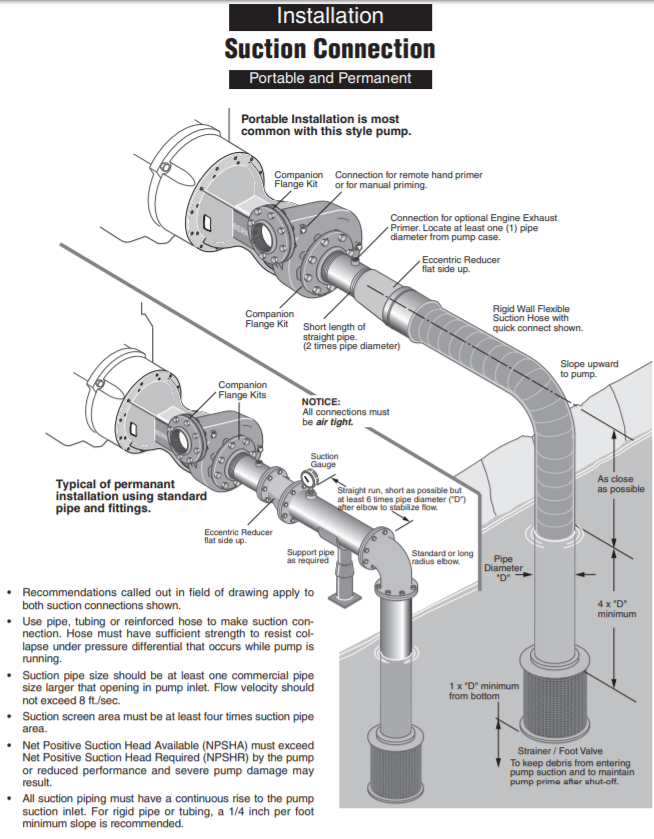

| RECOMMENDED INSTALLATION |

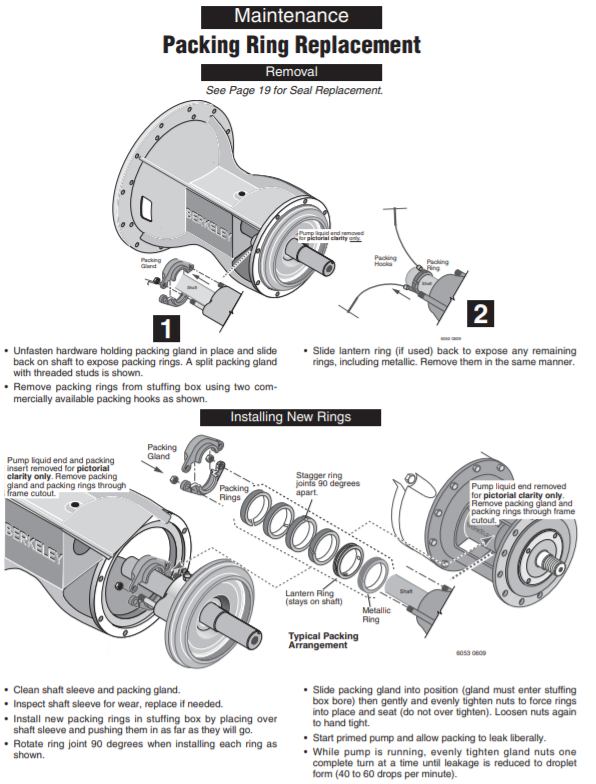

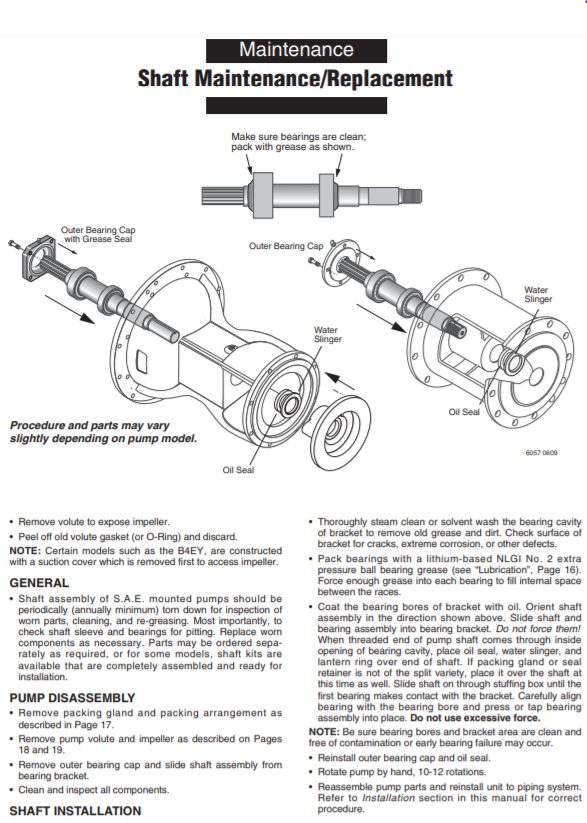

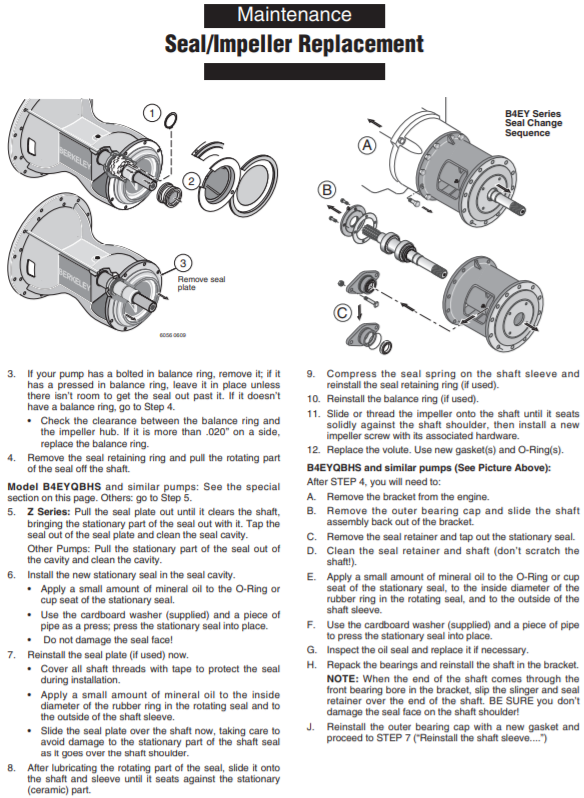

| MAINTENANCE |
| REPAIR PARTS |
| BROCHURE |
| Berkeley Irrigation SAE Mount Brochure |
| MANUAL |
| Berkeley Irrigation SAE Mount Owner's Manual |
| PRODUCT DIMENSIONS |
| Berkeley Irrigation SAE Mount Dimensions |

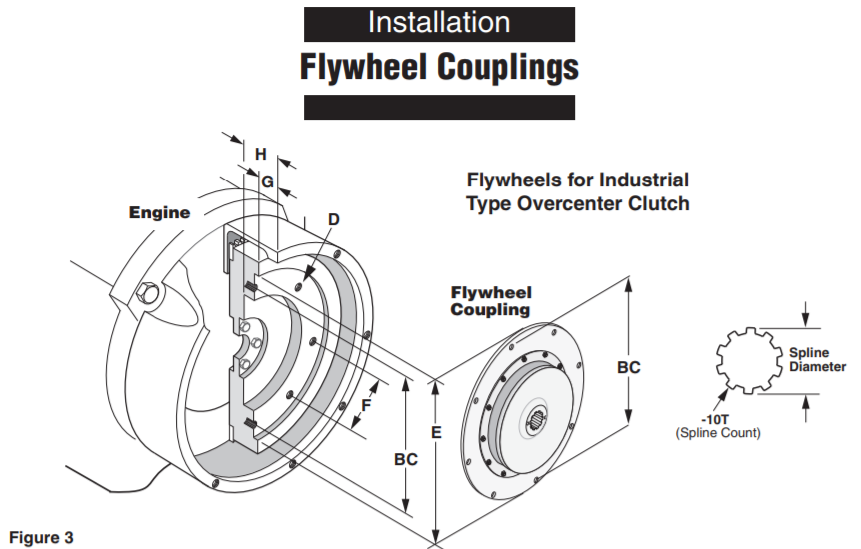

| HOUSING AND COUPLING SELECTION |
| Berkeley Irrigation SAE Mount Housing and Coupling Selection |

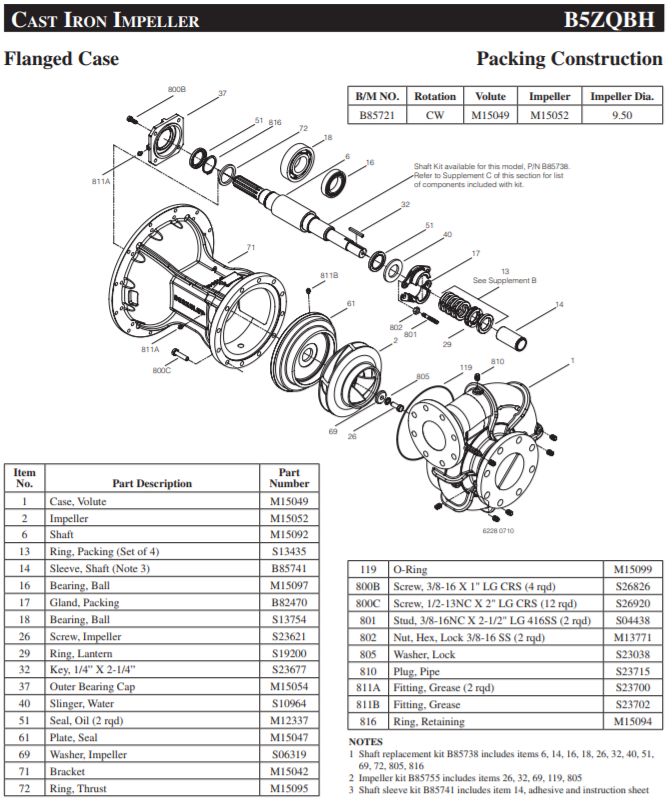

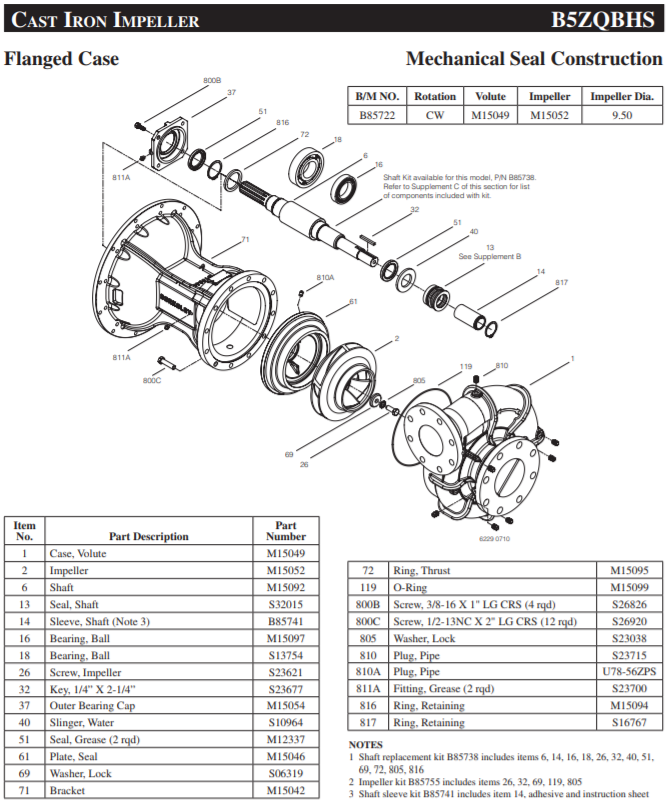

| REPAIR PARTS |
| Berkeley Irrigation SAE Mount Repair Parts |
Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
