Bell & Gossett e-90 Series Circulator Pumps Buyers Guide & Review

The Bell & Gossett e-90 series is a close coupled centrifugal in-line circulator pump designed for the commercial HVAC market. The e-90 offers excellent efficiency for energy savings. The e-90 can be installed in either horizontal or vertical applications. The new robust EPR/ carbon/ silicon carbide mechanical seal lowers maintenance and increases the life of the pump. This pump series is rated for 250°F and 175 PSI and is perfect for chilled water loops or heating water loops in commercial hydronic systems.

Features & Benefits

Long life and robust performance
Robust EPR/carbon/silicon-carbide mechanical seal
Energy savings
Increased hydraulic efficiency
Space savings and installation flexibility close-coupled
Ability to mount horizontally and vertically
Ease of maintenance
56J motor
Excellent for boiler recirculation applications
Optional 50°C ambient temperature performance

BELL & GOSSETT e-90 SERIES CIRCULATOR PUMPS

Bell & Gossett e-90 Series Circulator Pumps

Model Comparison Chart

Model	Impeller Diameter	HP	Voltage	Phase	Size	Material of Construction
e9001S	4.5"	1/4	115/208-230	1	1AAB	Cast Iron
e9004S	4.25"	1/4	115/208-230	1	1.25AAB	Cast Iron
e9002S	5"	1/3	115/208-230	1	1AAB	Cast Iron
e9005S	4.5"	1/3	115/208-230	1	1.25AAB	Cast Iron
e9007S	4"	1/4	115/208-230	1	1.5AAB	Cast Iron
e9008S	4.37"	1/3	115/208-230	1	1.5AAB	Cast Iron
e9003S	5.25"	1/2	115/208-230	1	1AAB	Cast Iron
e9006S	5.25"	1/2	115/208-230	1	1.25AAB	Cast Iron
e9011S	3.5"	1/3	115/208-230	1	2AAB	Cast Iron
e9015S	3.5"	1/3	115/208-230	1	3AAB	Cast Iron
e9009S	5"	1/2	115/208-230	1	1.5AAB	Cast Iron
e9010S	5.25"	3/4	115/208-230	1	5.25"	Cast Iron
e9020S	3.75"	1	115/208-230	1	1AAB	Cast Iron
e9006T	5.25"	1/2	208-230/460	3	1.25AAB	Cast Iron
e9012S	4.25"	1/2	115/208-230	1	2AAB	Cast Iron
e9009T	5"	1/2	208-230/460	3	1.5AAB	Cast Iron
e9016S	4"	1/2	115/208-230	1	3AAB	Cast Iron
e9013S	4.75"	3/4	115/208-230	1	2AAB	Cast Iron
e9010T	5.25"	3/4	208-230/460	3	1.5AAB	Cast Iron
e9021S	4.25"	1-1/2	115/208-230	1	1AAB	Cast Iron
e9017S	4.68"	3/4	115/208-230	1	3AAB	Cast Iron
e9025S	3.87"	1-1/2	115/208-230	1	1.25AAB	Cast Iron
e9014S	5.25"	1	115/208-230	1	2AAB	Cast Iron
e9029S	3.25"	1-1/2	115/208-230	1	1.5AAB	Cast Iron
e9012T	4.25"	1/2	208-230/460	3	2AAB	Cast Iron
e9016T	4"	1/2	208-230/460	3	3AAB	Cast Iron
e9013T	4.75"	3/4	208-230/460	3	2AAB	Cast Iron
e9018S	5.25"	1	115/208-230	1	3AAB	Cast Iron
e9017T	4.68"	3/4	208-230/460	3	3AAB	Cast Iron
e9022S	4.75"	2	115/208-230	1	1AAB	Cast Iron
e9014T	5.25"	1	208-230/460	3	2AAB	Cast Iron
e9026S	4.25"	2	115/208-230	1	1.25AAB	Cast Iron
e9018T	5.25"	1	208-230/460	3	3AAB	Cast Iron
e9030S	4"	2	115/208-230	1	1.5AAB	Cast Iron
e9033S	3.37"	2	115/208-230	1	2AAB	Cast Iron
e9027S	4.87"	3	208-230	1	1.25AAB	Cast Iron
e9023S	5.25"	3	208-230	1	1AAB	Cast Iron
e9031S	4.5"	3	208-230	1	1.5AAB	Cast Iron
e9020T	3.75"	1	208-230/460	3	1AAB	Cast Iron
e9034S	3.75"	3	208-230	1	2AAB	Cast Iron
e9003T	5.25"	1/2	208-230/460	3	1AAB	Cast Iron
e9036S	3.75"	3	208-230	1	3AAB	Cast Iron
e9021T	4.25"	1-1/2	208-230/460	3	1AAB	Cast Iron
e9025T	3.87"	1-1/2	208-230/460	3	1.25AAB	Cast Iron
e9029T	3.25"	1-1/2	208-230/460	3	1.5AAB	Cast Iron
e9026T	5.25"	2	208-230/460	3	1.25AAB	Cast Iron
e9022T	4.75"	2	208-230/460	3	1AAB	Cast Iron
e9030T	4"	2	208-230/460	3	1.5AAB	Cast Iron
e9023T	5.25"	3	208-230/460	3	1AAB	Cast Iron
e9027T	4.87"	3	208-230/460	3	1.25AAB	Cast Iron
e9033T	3.37"	2	208-230/460	3	2AAB	Cast Iron
e9031T	4.5"	3	208-230/460	3	1.5AAB	Cast Iron
e9036T	3.75"	3	208-230/460	3	3AAB	Cast Iron
e9034T	3.75"	3	208-230/460	3	2AAB	Cast Iron
Be9006T	5.25"	1/2	208-230/460	3	1.25AAB	Bronze
e9028T	5.25"	5	208-230/460	3	1.25AAB	Cast Iron
e9032T	5.25"	5	208-230/460	3	1.5AAB	Cast Iron
Be9001S	4.5"	1/4	115/208-230	1	1AAB	Bronze
e9037T	4.25"	5	208-230/460	3	3AAB	Cast Iron
e9035T	4.5"	5	208-230/460	3	2AAB	Cast Iron
Be9002S	5"	1/3	115/208-230	1	1AAB	Bronze
Be9003S	5.25"	1/2	115/208-230	1	1AAB	Bronze
Be9020S	3.75"	1	115/208-230	1	1AAB	Bronze
Be9004S	4.25"	1/4	115/208-230	1	1.25AAB	Bronze
Be9005S	4.5"	1/3	115/208-230	1	1.25AAB	Bronze
Be9003T	5.25"	1/2	208-230/460	3	1AAB	Bronze
Be9020T	3.75"	1	208-230/460	3	1AAB	Bronze
Be9006S	5.25"	1/2	115/208-230	1	1.25AAB	Bronze
Be9021S	4.25"	1-1/2	115/208-230	1	1AAB	Bronze
e9050S-ECM BF	5"	1/2	115	1	1AAB	Cast Iron
Be9021T	4.25"	1-1/2	208-230/460	3	1AAB	Bronze
e9052S-ECM BF	5"	1/2	230	1	1AAB	Cast Iron
e9053S-ECM BF	5"	1/2	230	1	1-1/4AAB	Cast Iron
e9051S-ECM BF	5"	1/2	115	1	1-1/4AAB	Cast Iron
Be9007S	4"	1/4	115/208-230	1	1.5AAB	Bronze
e9054S-ECM BF	5.25"	1	230	1	1-1/2AAB	Cast Iron
Be9022T	4.75"	2	208-230/460	3	1AAB	Bronze
Be9008S	4.37"	1/3	115/208-230	1	1.5AAB	Bronze
Be9022S	4.75"	2	115/208-230	1	1AAB	Bronze
Be9025S	3.87"	1-1/2	115/208-230	1	1.25AAB	Bronze
Be9025T	3.87"	1-1/2	208-230/460	3	1.25AAB	Bronze
Be9009S	5"	1/2	115/208-230	1	1.5AAB	Bronze
Be9010S	5.25"	3/4	115/208-230	1	1.5AAB	Bronze
e9055S-ECM BF	5"	1	230	1	2AAB	Cast Iron
Be9023T	5.25"	3	208-230/460	3	1AAB	Bronze
Be9026T	4.25"	2	208-230/460	3	1.25AAB	Bronze
Be9026S	4.25"	2	115/208-230	1	1.25AAB	Bronze
e9056S-ECM BF	4.69"	1	230	1	3AAB	Cast Iron
Be9023S	5.25"	3	208-230	1	1AAB	Bronze
Be9009T	5"	1/2	208-230/460	3	1.5AAB	Bronze
Be9010T	5.25"	3/4	208-230/460	3	1.5AAB	Bronze
Be9029S	3.25"	1-1/2	115/208-230	1	1.5AAB	Bronze
Be9027T	4.87"	3	208-230/460	3	1.25AAB	Bronze
Be9029T	3.25"	1-1/2	208-230/460	3	1.5AAB	Bronze
Be9027S	4.87"	3	208-230	1	1.25AAB	Bronze
Be9030S	4"	2	115/208-230	1	1.5AAB	Bronze
Be9030T	4"	2	208-230/460	3	1.5AAB	Bronze
Be9031T	4.5"	3	208-230/460	3	1.5AAB	Bronze
Be9031S	4.5"	3	208-230	1	1.5AAB	Bronze
Be9028T	5.25"	5	208-230/460	3	1.25AAB	Bronze
Be9016T	4"	1/2	208-230/460	3	3AAB	Bronze
Be9017T	4.68"	3/4	208-230/460	3	3AAB	Bronze
Be9011S	3.5"	1/3	115/208-230	1	2AAB	Bronze
Be9015S	3.5"	1/3	115/208-230	1	3AAB	Bronze
Be9018T	5.25"	1	208-230/460	3	3AAB	Bronze
Be9032T	5.25"	5	208-230/460	3	1.5AAB	Bronze
Be9012S	4.25"	1/2	115/208-230	1	2AAB	Bronze
Be9016S	4"	1/2	115/208-230	1	3AAB	Bronze
Be9013S	4.75"	3/4	115/208-230	1	2AAB	Bronze
Be9012T	4.25"	1/2	208-230/460	3	2AAB	Bronze
Be9014S	5.25"	1	115/208-230	1	2AAB	Bronze
Be9017S	4.68"	3/4	115/208-230	1	3AAB	Bronze
Be9013T	4.75"	3/4	208-230/460	3	2AAB	Bronze
Be9018S	5.25"	1	115/208-230	1	3AAB	Bronze
Be9014T	5.25"	1	208-230/460	3	2AAB	Bronze
Be9033S	3.37"	2	115/208-230	1	2AAB	Bronze
Be9033T	3.37"	2	208-230/460	3	2AAB	Bronze
Be9034T	3.75"	3	208-230/460	3	2AAB	Bronze
Be9036T	3.75"	3	208-230/460	3	3AAB	Bronze
Be9036S	3.75"	3	208-230	1	3AAB	Bronze
Be9034S	3.75"	3	208-230	1	2AAB	Bronze
Be9035T	4.5"	5	208-230/460	3	2AAB	Bronze
Be9037T	4.25"	5	208-230/460	3	3AAB	Bronze

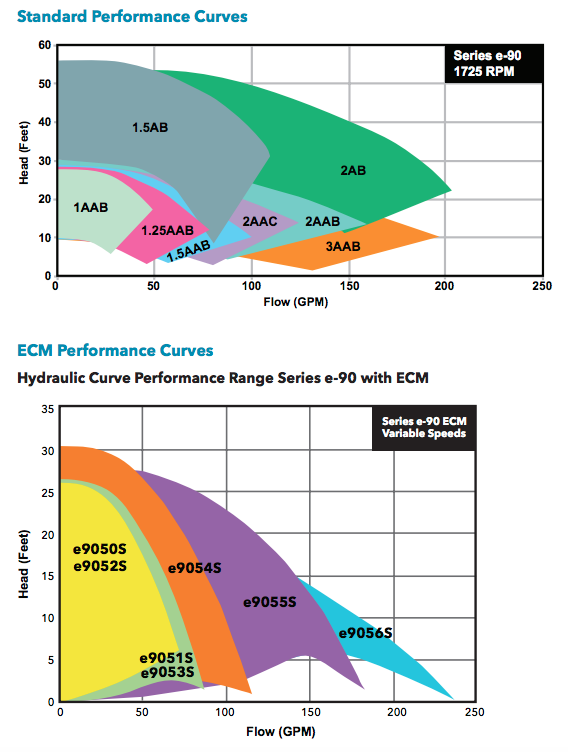

PERFORMANCE CURVES

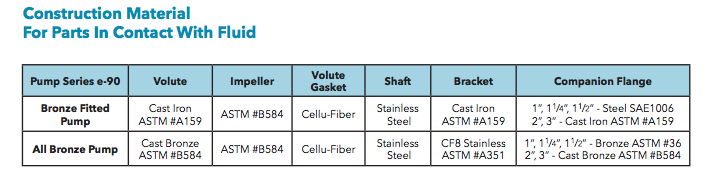

MATERIALS OF CONSTRUCTION

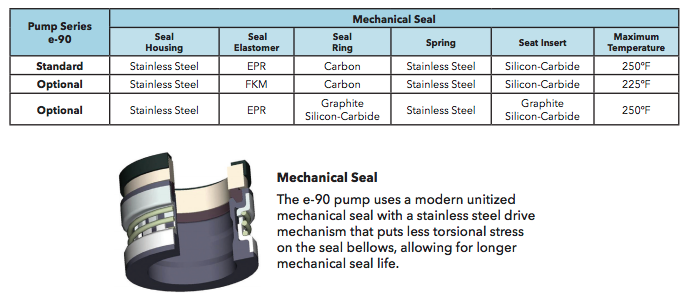

MECHANICAL SEAL DATA

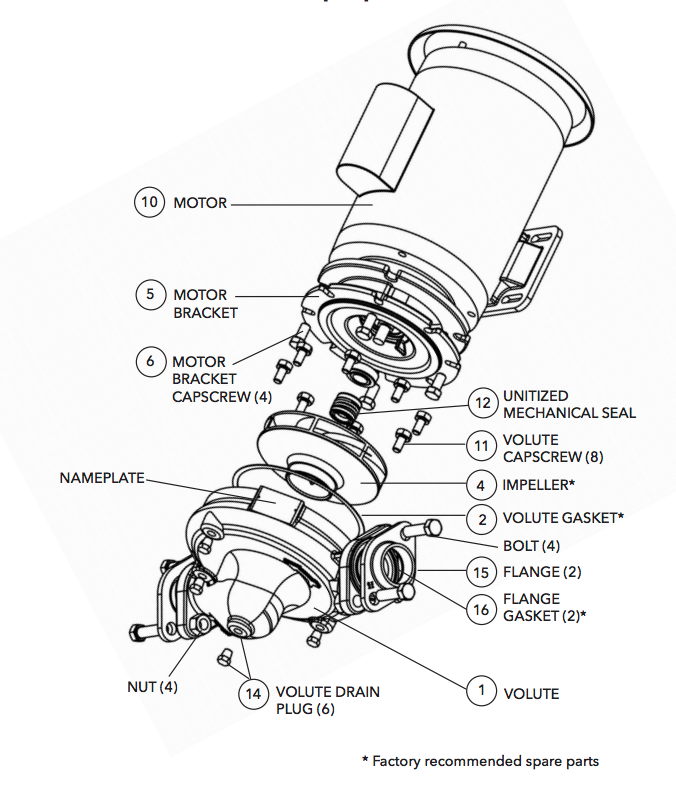

EXPLODED VIEW

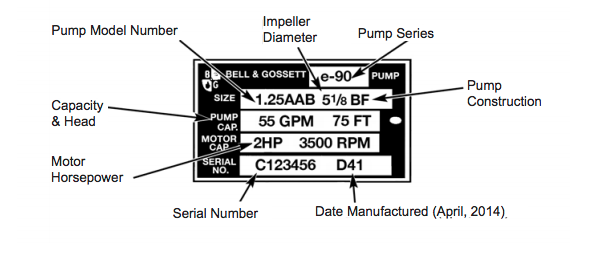

NAMEPLATE IDENTIFIER

BROCHURE

Bell & Gossett e-90 Series Circulator Pump Brochure

CURVES

Bell & Gossett e-90 Series Circulator Pump Curves

INSTALLATION MANUAL

Bell & Gossett e-90 Series Circulator Pump Installation Manual

REPAIR PARTS

Bell & Gossett e-90 Series Circulator Pump Repair Parts

PUMP ASSEMBLY INSTRUCTIONS

Bell & Gossett e-90 Series Circulator Pump Assembly Instructions

REPLACEMENT SEAL INSTRUCTIONS

Bell & Gossett e-90 Series Circulator Pump Replacement Seal Instructions
