Bell & Gossett AutoCirc Series Re-Circulation Pumps Buyers Guide & Review

Bell & Gossett AutoCirc series circulators are engineered with a high efficiency ECM (Electronically Commutated Motor) technology, specifically designed for standard water heaters. These circulators are lead free and come assembled with a timer, cord, and plug. Models in this series feature a fixed thermostat that automatically turns the pump ON when water temperature in the hot water line reaches a certain degree and turns it OFF when water temperature reaches a lower degree, ensuring hot water availability only seconds behind. When the pump is OFF, a built-in auto closure device prevents any other hot-to-cold line or cold-to-hot line mix.

Features

Silent during operation
Requires only one pump and one installation for all fixtures on the hot water plumbing line
Does not require a return line
Saves money and thousands of gallons of water annually
Built in 24-hour timer which allows the selection of system operating periods to suit family usage
Built-in fixed thermostat
Comes complete with a 6 ft. long power cord
Designed for potable water applications

BELL & GOSSETT AUTOCIRC SERIES RE-CIRCULATION PUMPS

Bell & Gossett AutoCirc Series Re-Circulation Pumps

Model Comparison Chart

Model	Connection Size	Height	Width	Voltage	Max Pressure (PSI)	Max Working Temp (F)
e3-4_/BDPQC	1-/2"	8"	4-1/2"	115	145	203
e3-4_/BDPRC	1/2"	8"	4-1/2"	115	145	203

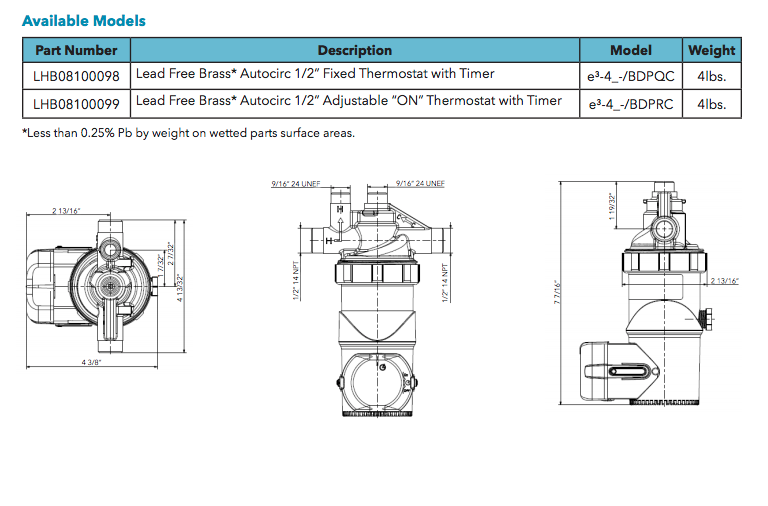

DIMENSIONS

DIAGRAM

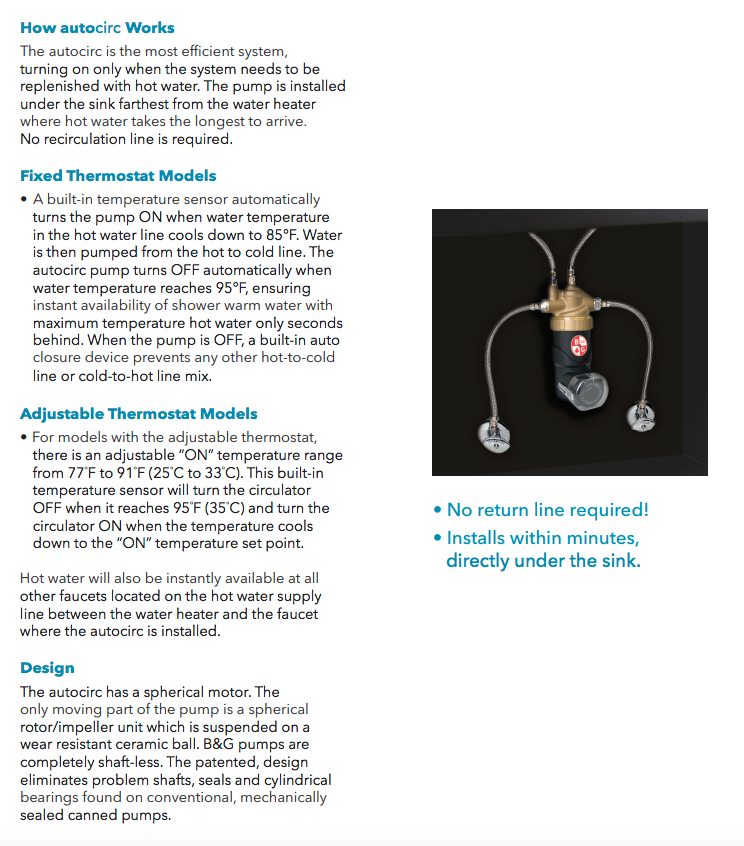

FEATURES

BROCHURE

Bell & Gossett AutoCirc Series Re-Circulation Pump Brochure

INSTRUCTIONS

Bell & Gossett AutoCirc Series Re-Circulation Pump Instructions

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
