Barnes XSGV-L Series Explosion Proof Grinder Pumps Buyers Guide & Review

Barnes Pumps Buyer Guides

June 12, 2019

Barnes XSGV-L Series Explosion Proof Grinder Pumps Buyers Guide & Review

The Barnes XSGV-L series of submersible explosion proof grinder pumps is designed to reduce domestic, commercial, institutional, and light industrial sewage to a finely ground slurry. This series is suitable for use in hazardous conditions.

Features

UL & CSA Listed
Cast Iron Construction
Stainless Steel Hardware
Quick Connect Style Cords
Class F Insulation
Capacitor Start / Capacitor Run

BARNES XSGV-L SERIES EXPLOSION PROOF GRINDER PUMPS

Barnes XSGV-L Series Explosion Proof Grinder Pumps

Model Comparison Chart

Model	Discharge (NPT Vertical)	HP	Voltage	Phase	GPM	Max. Head
XSGV2042L	1-1/4"	2	460	3	50	100'
XSGV2032L	1-1/4"	2	230	3	50	100'
XSGV2022L	1-1/4"	2	230	3	50	100'
XSGV2062L	1-1/4"	2	200	3	50	100'

PERFORMANCE CURVES

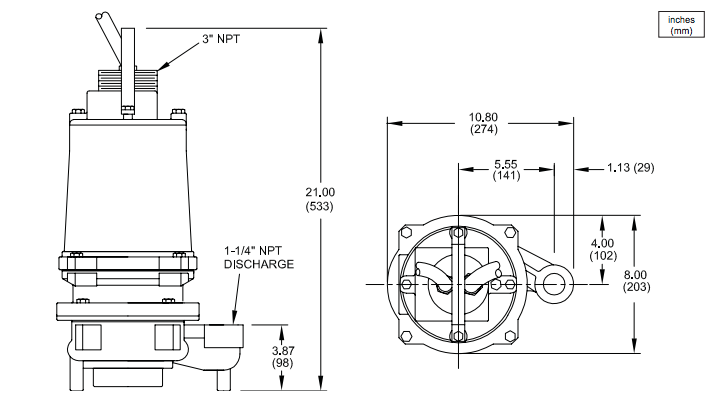

DIMENSIONS

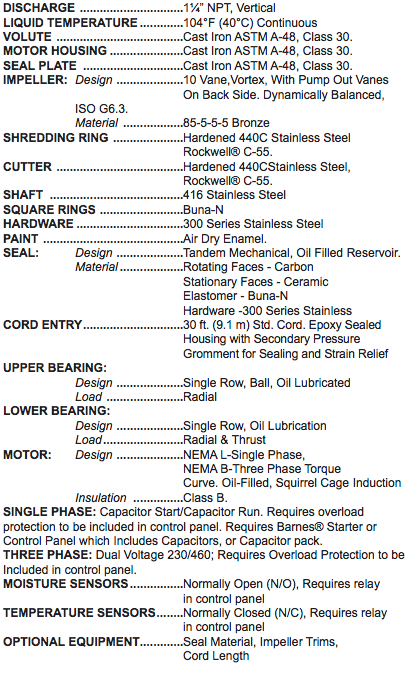

SPECIFICATIONS

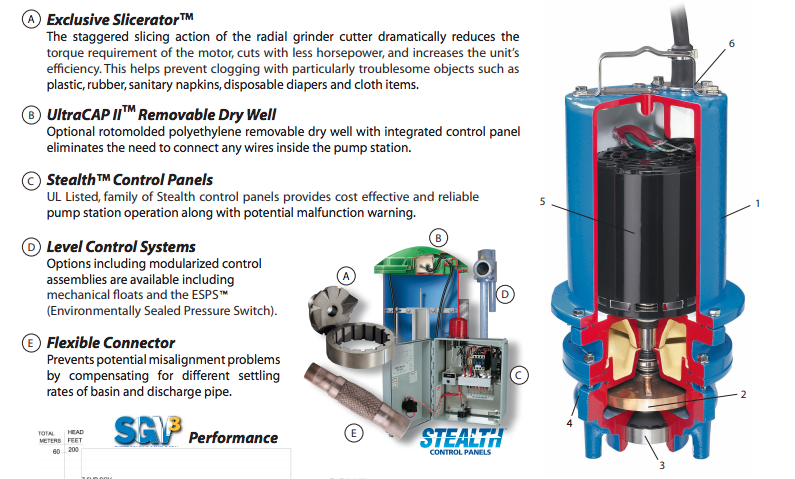

DIAGRAM

BROCHURE

Barnes XSGV-L Series Explosion Proof Grinder Pump Brochure

SPECIFICATIONS

Barnes XSGV-L Series Explosion Proof Grinder Pump Specifications

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
