Barnes SU Series Sump Pumps Buyers Guide & Review

Barnes Pumps Buyer Guides

June 12, 2019

Barnes SU Series Sump Pumps Buyers Guide & Review

The Barnes SU series of sump pumps is designed with a magnetic float switch that is housed in a shroud to guard against obstruction and wedging. The magnets activate a switch as the float rises and falls. The SU series also comes with a built-in strainer that prevents large solids from clogging the impeller.

Features

Vertical float integral to pump
High strength, rare earth magnets provide outstanding activation capability with a totally sealed switch
Permanent Split Capacitor motor draws less amps
Oil lubricated bearings provide quieter running and longer life
Cast iron motor housing provides excellent motor heat dissipation
Top-suction impeller eliminates air lock issues
Buna-N O-rings
3/16" maximum solids
14" minimum sump diameter
Single mechanical seal, Type 11A

Applications

Residential sump pump

BARNES SU SERIES SUMP PUMPS

Barnes SU Series Sump Pumps

Model Comparison Chart

Model	Discharge (NPT Vertical)	HP	Voltage	Phase	GPM	Max. Head
SU25	1-1/2"	1/4	120	1	35	17'
SU33	1-1/2"	1/3	120	1	42	20'

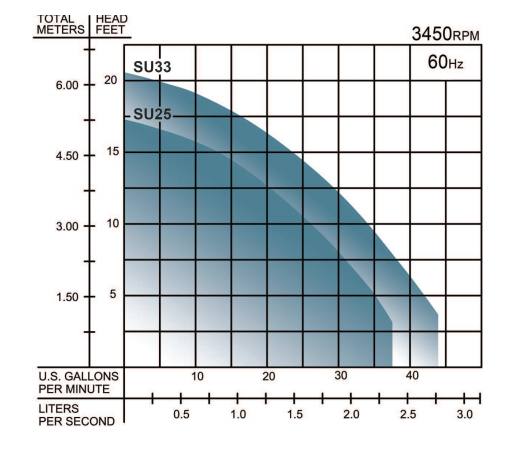

PERFORMANCE CURVES

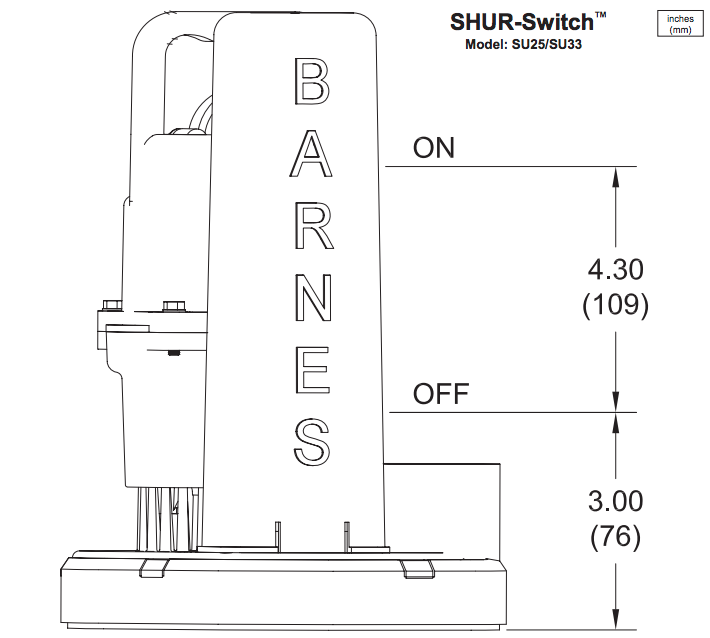

DIMENSIONS

SPECIFICATIONS

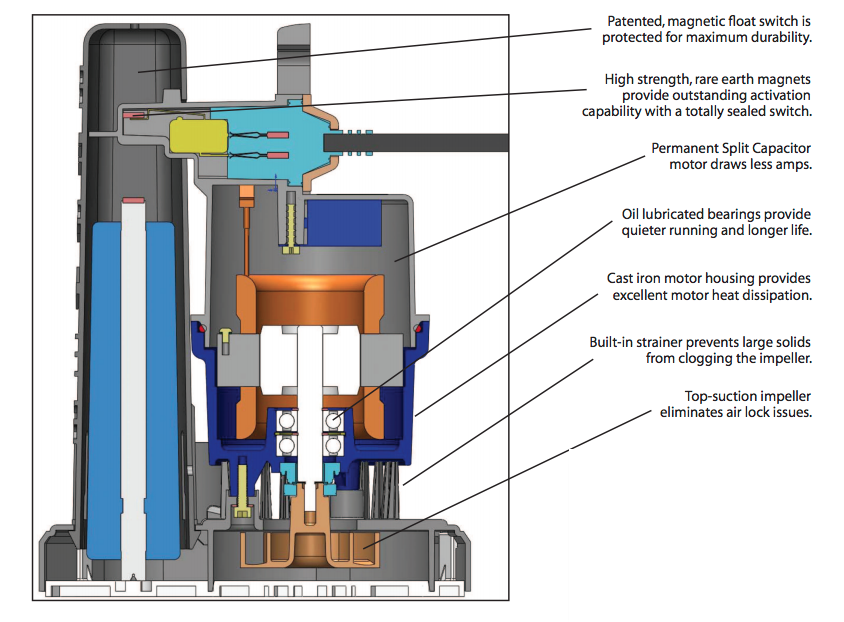

EXPLODED VIEW

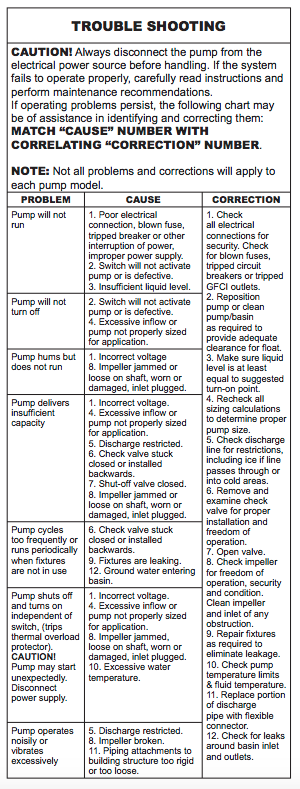

TROUBLESHOOTING

BROCHURE

Barnes SU Series Sump Pump Brochure

SPECIFICATIONS

Barnes SU Series Sump Pump Specifications

INSTALLATION MANUAL

Barnes SU Series Sump Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
