Barnes STEP-SS Series Effluent Pumps Buyers Guide & Review

Barnes Pumps Buyer Guides

June 06, 2019

Barnes STEP-SS Series Effluent Pumps Buyers Guide & Review

The Barnes STEP-SS series of submersible effluent pumps is designed for handling greywater from wash basins, showers, and baths in typical septic tank / effluent applications. This series is available in a single or double seal design. It features cast iron construction, a stainless steel shaft and is CSA listed. Barnes effluent pumps save time and replacement costs because they are interchangeable with competing effluent models. They require no additional plumbing when replacing most competitor’s pumps.

Specifications

HP - 1.0
Volt/PH - 240/1
Hz - 60
RPM - 3450
Nema Start Code - F
Full Load Amps - 8.3
Locked Rotor Amps - 21.8

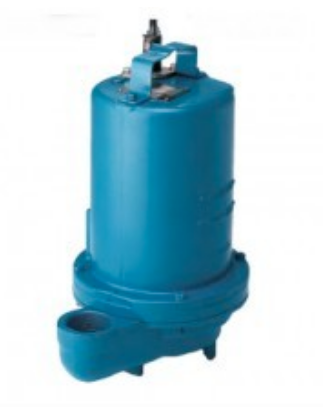

BARNES STEP-SS SERIES EFFLUENT PUMPS

Barnes STEP-SS Series Effluent Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
STEP512SS	2"	1/2	120	1	79	80'
STEP522SS	2"	1/2	240	1	79	80'
STEP512SSA	2"	1/2	120	1	79	80'
STEP552SS	2"	1/2	600	3	79	80'
STEP592SS	2"	1/2	200/240	3	79	80'
STEP542SS	2"	1/2	480	3	79	80'
STEP1022SS	2"	1	240	1	87	110'
STEP1092SS	2"	1	200/240	3	87	110'
STEP1042SS	2"	1	480	3	87	110'
STEP1052SS	2"	1	600	3	87	110'

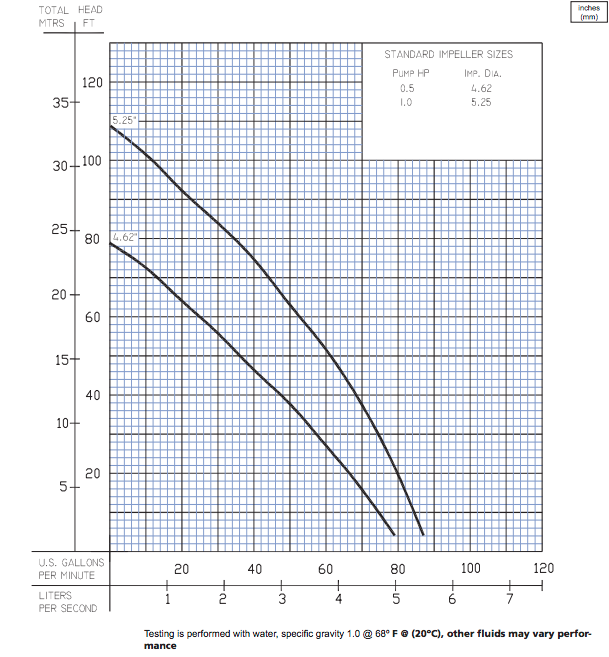

PERFORMANCE CURVES

DIMENSIONS

SPECIFICATIONS

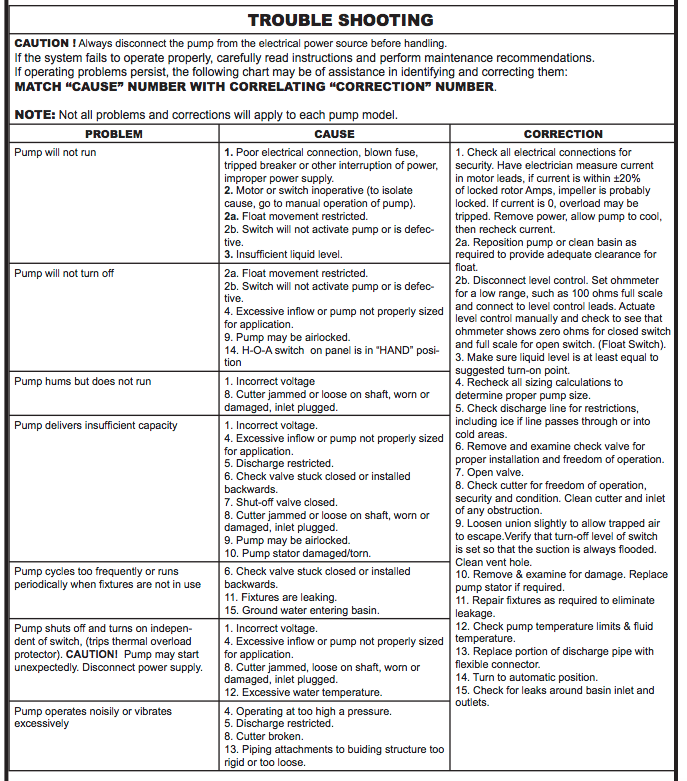

TROUBLESHOOTING

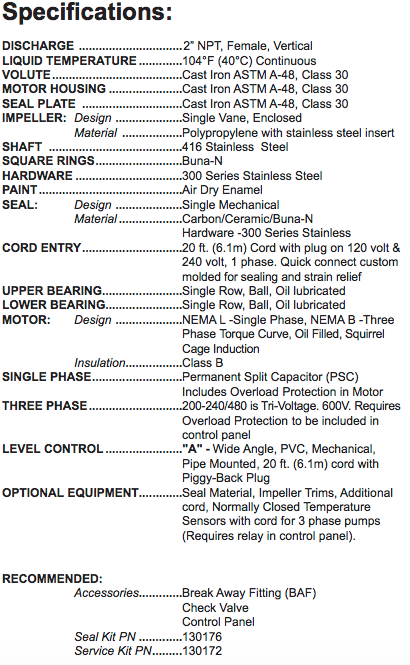

SPECIFICATIONS

Barnes STEP-SS Series Effluent Pump Specifications

BROCHURE

Barnes STEP-SS Series Effluent Pump Brochure

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
