Barnes SGV Series Grinder Pumps Buyers Guide & Review

The Barnes SGV series of grinder pumps is designed to reduce sewage particles to a finely ground slurry. It is suitable for domestic, commercial, and light industrial applications.

Features

Recessed vortex impeller design virtually eliminates pump damage from cavitation
Unique and robust 3-bearing shaft support design significantly extends mechanical seal life by minimizing shaft deflection
Cast iron impeller will not corrode
Exclusive Slicerator grinder eliminates jams
Quick-connect power cord eliminates wiring mistakes
Available from factory with pre-wired and tested basin package
Available in 2 hp, 3 hp, 5 hp, and 7.5 hp models
Double mechanical seal provides clean environment for long life

BARNES SGV SERIES GRINDER PUMPS

Barnes SGV Series Grinder Pumps

Model Comparison Chart

Model	Discharge (NPT Vertical)	HP	Voltage	Phase	GPM	Max. Head
SGV3042L	2"	3	600	3	108	98'
SGV3062L	2"	3	200	3	108	98'
SGV3052L	2"	3	600	3	108	98'
SGV3032L	2"	3	240	3	108	98'
SGV3072L	2"	3	200-240	1	108	98'
SGV5052L	2"	5	600	3	110	150'
SGV5032L	2"	5	240	3	110	150'
SGV5042L	2"	5	480	3	110	150'
SGV5062L	2"	5	200	3	110	150'
SGV5022L	2"	5	240	1	110	150'
SGV7552L	2"	7-1/2	600	3	110	160'
SGV7532L	2"	7-1/2	240	3	110	160'
SGV5002L	2"	5	200	1	110	150'
SGV7542L	2"	7-1/2	480	3	110	160'

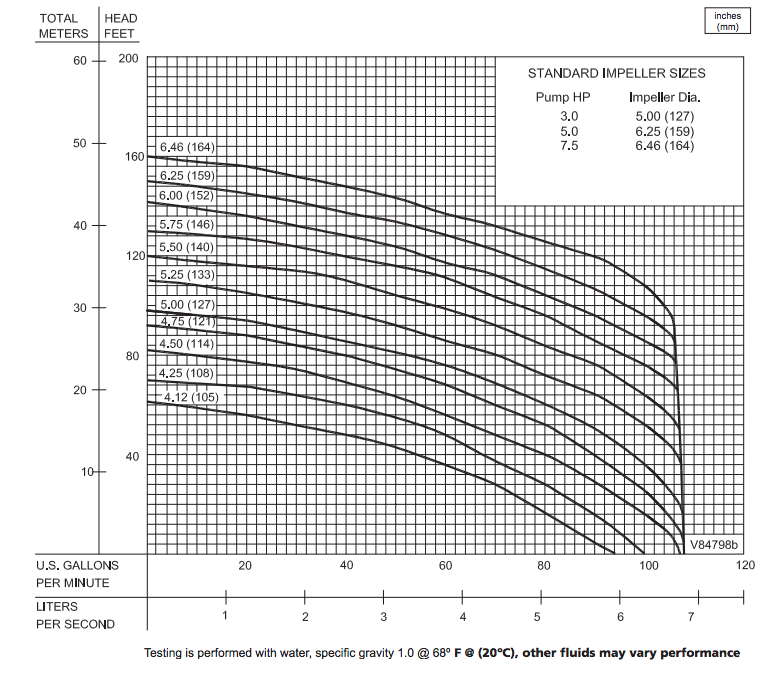

PERFORMANCE CURVES

DIMENSIONS

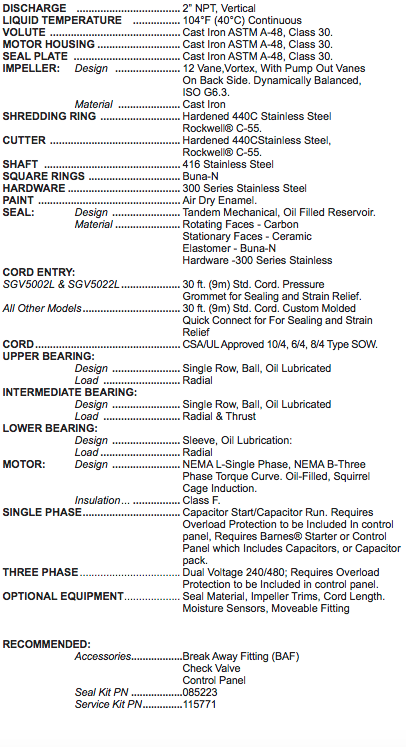

SPECIFICATIONS

BROCHURE

Barnes SGV Series Grinder Pump Brochure

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
