Barnes SFU Series Fountain Pumps Buyers Guide & Review

Barnes Pumps Buyer Guides

June 18, 2019

Barnes SFU Series Fountain Pumps Buyers Guide & Review

The Barnes SFU series of fountain pumps is specially designed for use in decorative water displays.

Specifications

HP - 1/3
Volt/PH - 115/1
Hz - 60
RPM - 3450
Nema Start Code - J
Full Load Amps - 8.0
Locked Rotor Amps -21.0
Cord Size - 16/3

BARNES SFU SERIES FOUNTAIN PUMPS

Barnes SFU Series Fountain Pumps

Model Comparison Chart

Model	Discharge	HP	Voltage	Phase	GPM	Max. Head
SFU31	1-3/4"	1/3	115	1	65	34'
SFU51	1-3/4"	1/2	115	1	77	42'
SFU71	1-3/4"	3/4	115	1	94	50'
SFU102	1-3/4"	1	230	1	100	56'
SFU72	1-3/4"	3/4	230	1	94	50'

PERFORMANCE CURVE

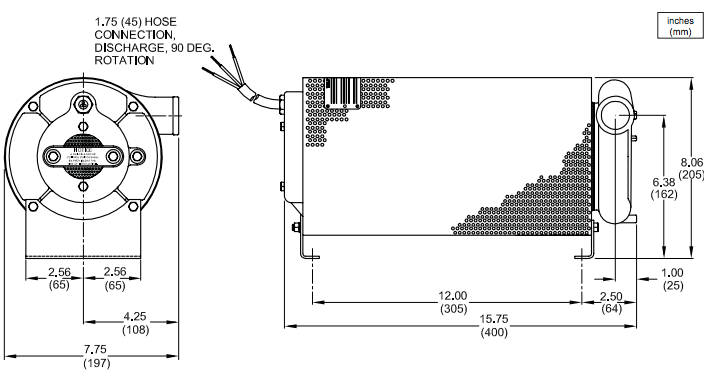

DIMENSIONS

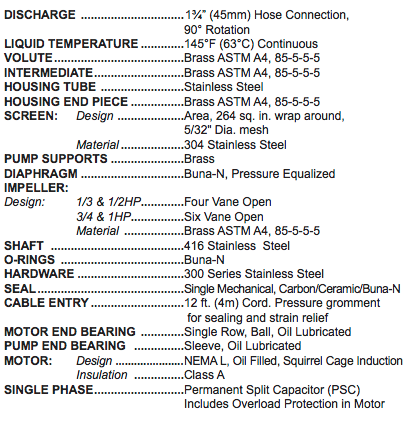

SPECIFICATIONS

Barnes SFU Series Fountain Pump Specifications

BROCHURE

Barnes SFU Series Fountain Pump Brochure

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
