Barnes SF Series Fountain Pumps Buyers Guide & Review

The Barnes SF series of fountain pumps is designed to pump effluent or wastewater, nonexplosive and noncorrosive liquids in decorative water displays. It has a torque curved, oil filled, squirrel cage induction motor.

Features

2" NPT, female, vertical, discharge
Volute, motor housing, impeller, and seal plate are cast iron
Impeller has an open 2 vane design with pump out vanes on back side
416 stainless steel shaft
Buna-N square rings
300 series stainless steel hardware
Single mechanical seal design made of Carbon/Ceramic/Buna-N with an oil filled reservoir secondary exclusion seal
Single row, oil lubricated upper and lower ball bearings
Permanent Split Capacitor (PSC) motor type
Includes thermal overload protection in motor
15 ft. quick disconnect cord with plug, pressure gromment for sealing and strain relief

Applications

Dramatic, decorative water displays

BARNES SF SERIES FOUNTAIN PUMPS

Barnes SF Series Fountain Pumps

Model Comparison Chart

Model	Discharge (NPT Vertical)	HP	Voltage	Phase	GPM	Max. Head
SF411	2"	4/10	115	1	128	26'

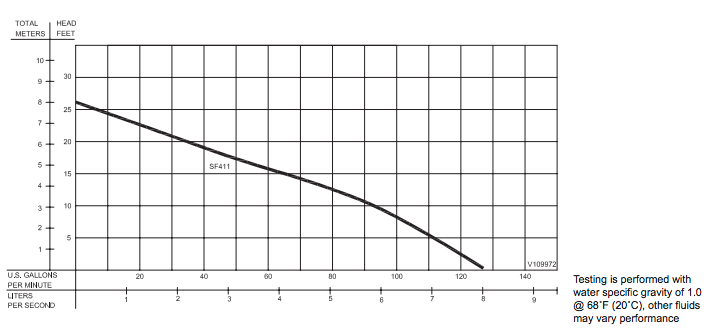

PERFORMANCE CURVE

DIMENSIONS

SPECIFICATIONS

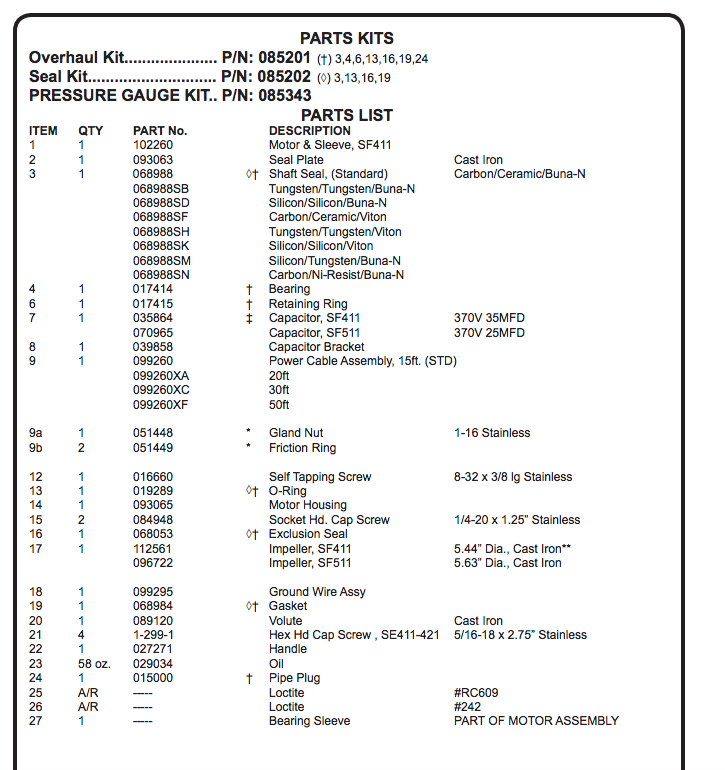

REPAIR PARTS

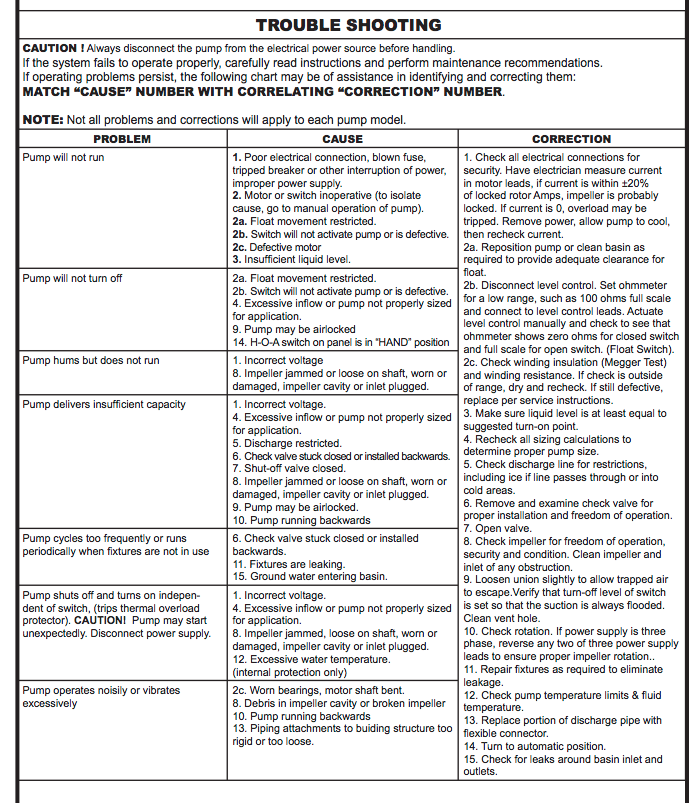

TROUBLESHOOTING

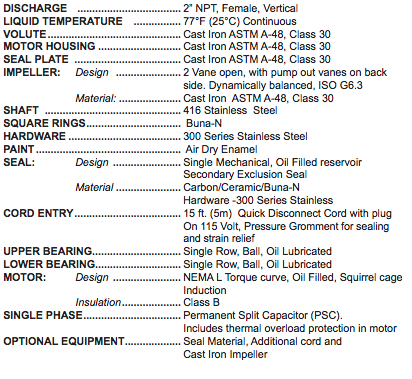

SPECIFICATIONS

Barnes SF Series Fountain Pump Specifications

INSTALLATION MANUAL

Barnes SF Series Fountain Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
