Barnes SEV-511/521 Series Sewage Pumps Buyers Guide & Review

The Barnes SEV-511/521 series of sewage pumps combines high quality, high performance and low cost in a rugged, heavy duty design. Capable of handling up to 2 inch spherical solids, this series utilizes a bronze vortex impeller and a combination of cast iron and stainless steel components to stand up to the toughest residential sewage ejector applications. Barnes solids handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.

Features

Maximum flow rate to 117 GPM at 4 feet of head
Maximum shutoff head of 21 feet
Impeller provides 2" solids handling capability
Permanent split capacitor motor for reliable, high performance, longer motor life, greater starting torque, and lower amp draw
1/2 HP, 1750 RPM single phase motor includes overload protection
Heavy duty upper and lower ball bearings are oil lubricated for superior cooling and maximum life
Standard 15 feet cord length
Manual, level control switch not provided

Applications

Typical raw sewage

BARNES SEV-511/521 SERIES SEWAGE PUMPS

Barnes SEV-511/521 Series Sewage Pumps

Model Comparison Chart

Model	Discharge (NPT Vertical)	HP	Voltage	Phase	GPM	Max. Head
SEV511	2"	1/2	115	1	118	23'
SEV511A	2"	1/2	115	1	118	23'
SEV521	2"	1/2	230	1	118	23'
SEV511AU	2"	1/2	115	1	118	23'
SEV511VF	2"	1/2	115	1	118	23'
SEV521AU	2"	1/2	230	1	118	23'

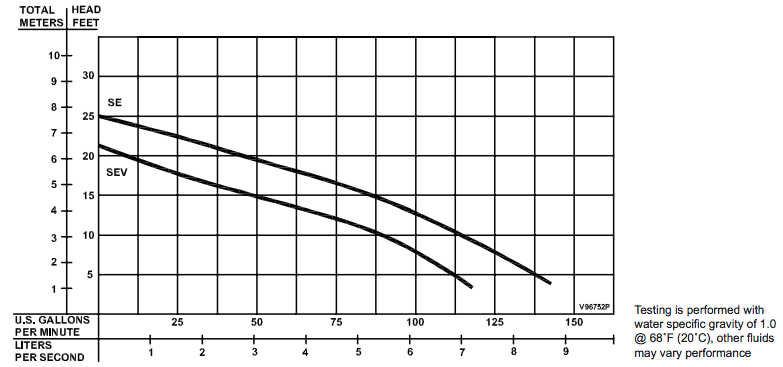

PERFORMANCE CURVES

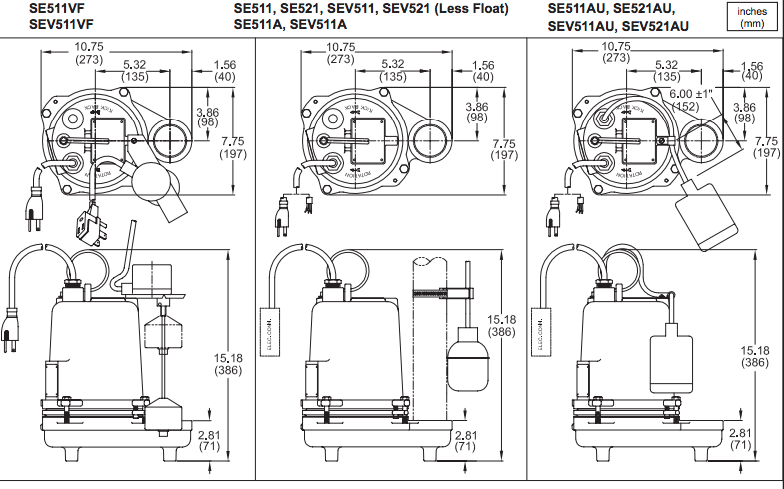

DIMENSIONS

SPECIFICATIONS

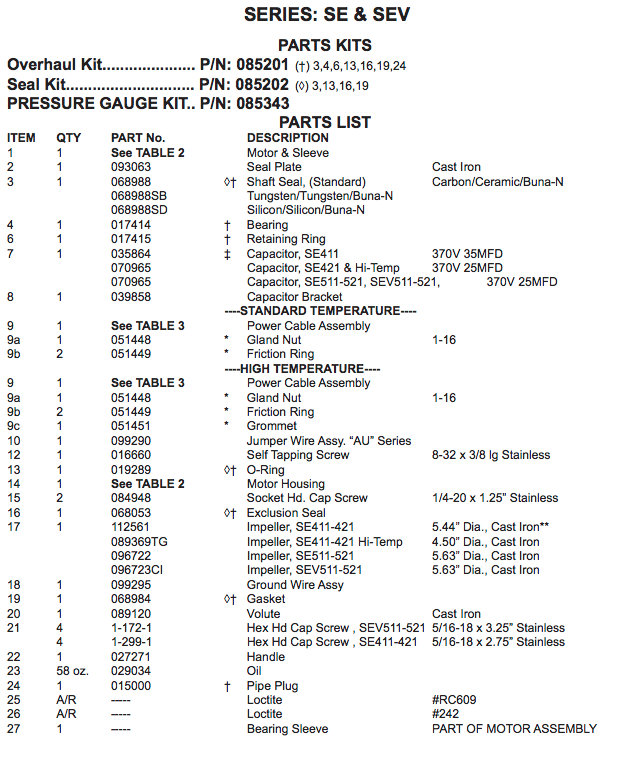

REPAIR PARTS

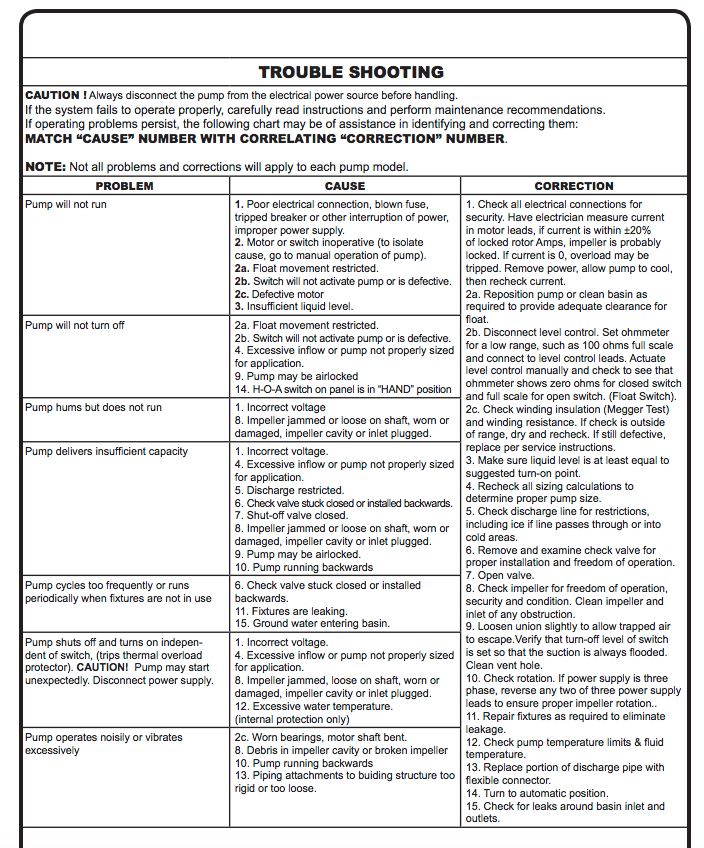

TROUBLESHOOTING

BROCHURE

Barnes SEV-511/521 Series Sewage Pump Brochure

INSTALLATION MANUAL

Barnes SEV-511/521 Series Sewage Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
