Barnes SE-HT Series High Temperature Pumps Buyers Guide & Review

The Barnes SE-HT series of high temperature submersible, non-clog sewage pumps is designed to pump effluent or wastewater, nonexplosive and noncorrosive liquids. It has a solids handling capability of up 2 inches.

Features

2" NPT, female, vertical
Volute, motor housing, impeller and seal plate are cast iron
Impeller has a 2 vane open design with pump out vanes on back side
416 stainless steel shaft
Buna-N square rings
300 series stainless steel hardware
Single mechanical seal design made of Carbon/Ceramic/Buna-N
Single row, oil lubricated upper and lower ball bearings

BARNES SE-HT SERIES HIGH TEMPERATURE PUMPS

Barnes SE-HT Series High Temp Pumps

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Phase	GPM	Max. Head
SE411HT	2"	4/10	115	1	95	20'
SE411HTA	2"	4/10	115	1	95	20'
SE421HT	2"	4/10	230	1	95	20'
SE51HT	2"	1/2	120	1	158	25'
SE51HTA	2"	1/2	120	1	158	25'
SE52HT	2"	1/2	240	1	158	25'
SE51HTAU	2"	1/2	120	1	158	25'
SE52HTAU	2"	1/2	240	1	158	25'

PERFORMANCE

DIMENSIONS

SPECIFICATIONS

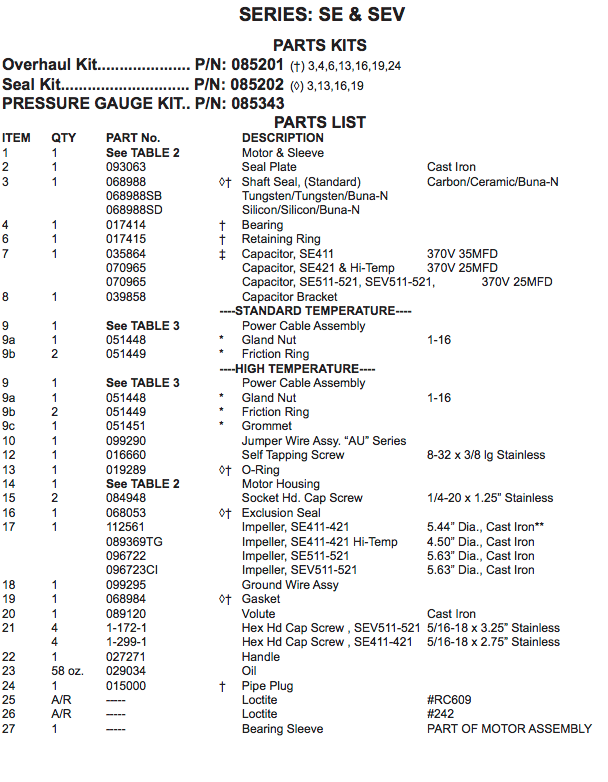

REPAIR PARTS

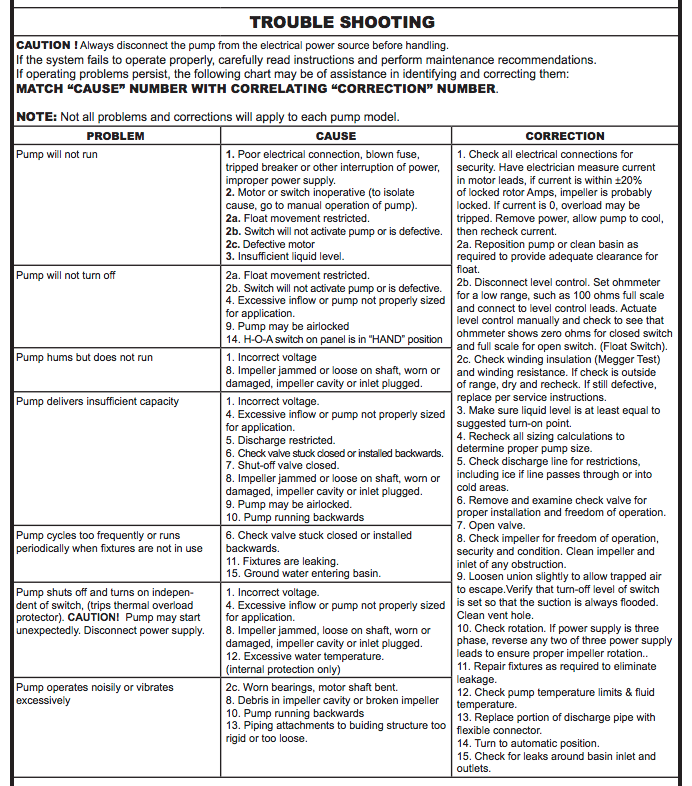

TROUBLESHOOTING

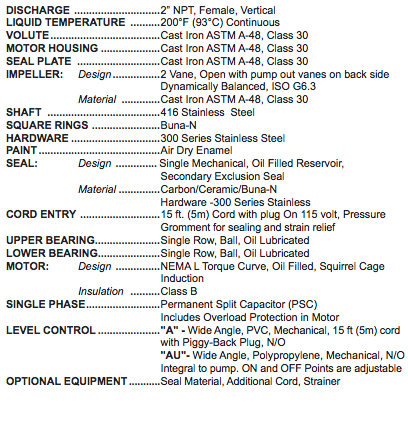

SPECIFICATIONS

Barnes SE-HT Series High Temperature Pump Specifications

INSTALLATION MANUAL

Barnes SE-HT Series High Temperature Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
