Barnes SE-411/421 Series Sewage System Packages Buyers Guide & Review

Barnes Pumps Buyer Guides

June 17, 2019

Barnes SE-411/421 Series Sewage System Packages Buyers Guide & Review

The Barnes SE-411/421 series preassembled simplex sewage packages are ideal for residential and commercial sewage or sump applications. These series are designed to handle wastes from lavatories, laundry tubs, floor drains, water closets, etc., and will pump the water from below ground "uphill" to the sewer.

Package includes

(1) Mechanical float switch
(1) Polyethylene basin
(1) Split cover with floatree
(1) 2" Vertical compression check valve
Sch. 40 Discharge pipe, cover gasket, cover hardware, cord grommet, discharge and vent grommets also included.

Package Features

Floatree design for easy float maintenance; Flange includes provision for optional alarm float
Split cover allows simplified basin access
Sidewall ribs lock basin in place when concrete floor is poured
Inlet hubs easily connect to piping with fl exible rubber connectors (Provided by others)
Ribbed floor limits pump rotation
Liquid Temperature 104°F (40°C)

BARNES SE-411/421 SERIES SEWAGE SYSTEM PACKAGES

Barnes SE-411/421 Series Sewage System Packages

Model Comparison Chart

Model	Discharge (NPT)	HP	Voltage	Basin Dimensions	GPM	Max. Head
SE411	2"	4/10	115	25"x24"	120	25'
SE421	2"	4/10	115	25"x24"	120	25'

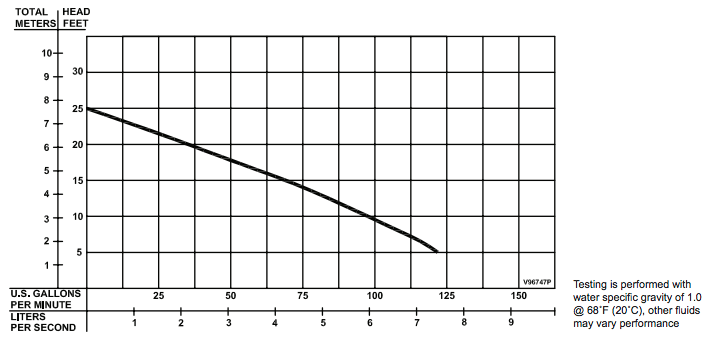

PERFORMANCE CURVE

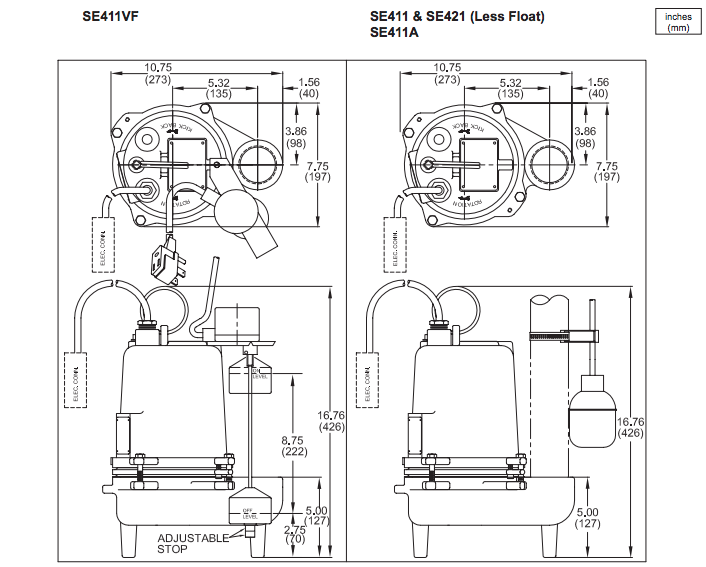

DIMENSIONS

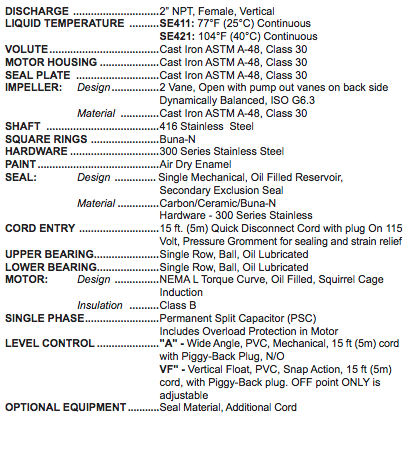

SPECIFICATIONS

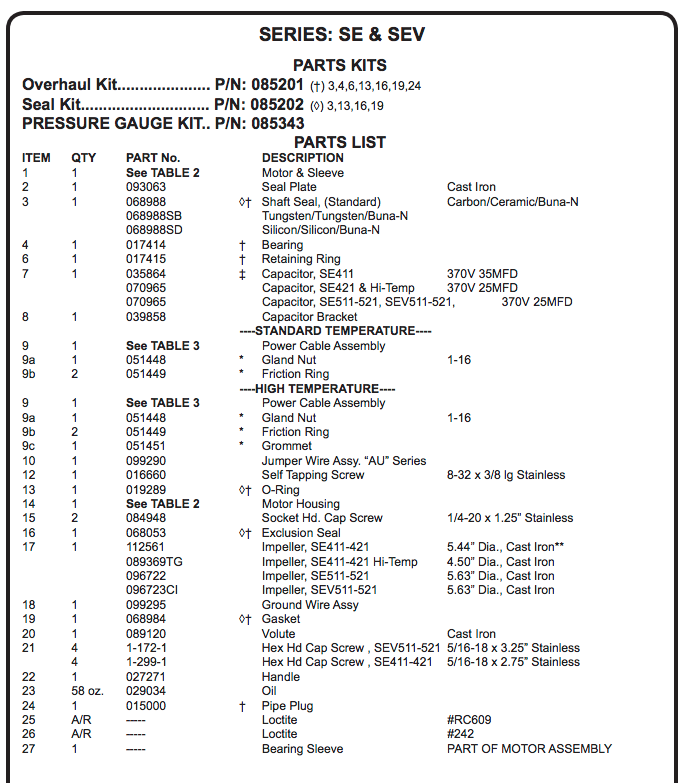

REPAIR PARTS

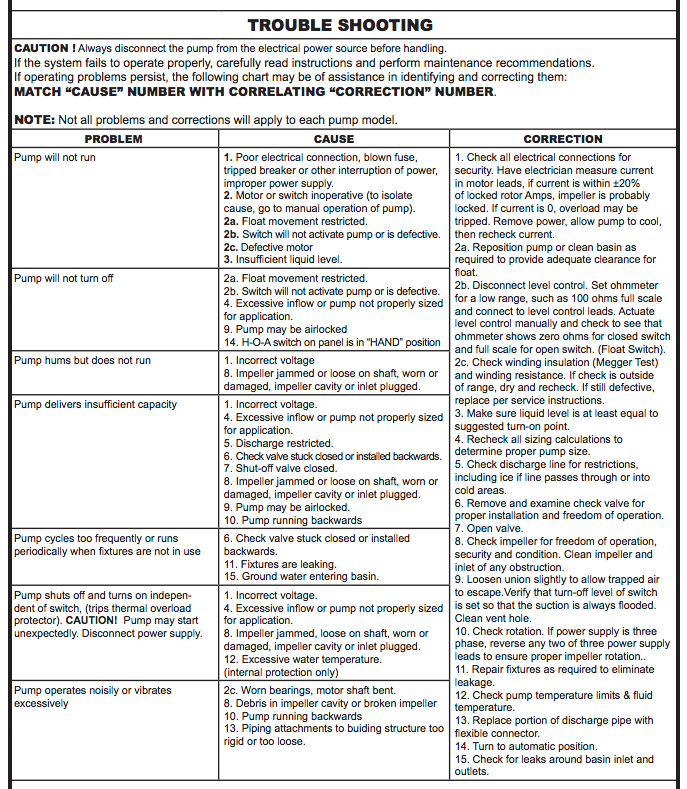

TROUBLESHOOTING

SPECIFICATIONS

Barnes SE-411/421 Series Sewage System Package Specifications

INSTALLATION MANUAL

Barnes SE-411/421 Series Sewage System Package Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
