Barnes BC Series Condensate Pumps Buyers Guide & Review

Barnes Pumps Buyer Guides

June 19, 2019

Barnes BC Series Condensate Pumps Buyers Guide & Review

The Barnes BC series of condensate pumps is a general purpose residential and commercial pump that removes condensate when gravity drains are not available. Thermal protection, automatic start, and quiet operation are just a few of the features that make this series the right selection for all your condensate removal needs!

Features

High impact ABS tank
Wall mounts
Three 1-1/8" Diameter intake holes
Quiet operation
150° F Max liquid temperature.
Stainless steel shaft
Removable check valve
Barbed and threaded discharge connection
Fully automatic operation
Dual single row ball bearings
Thermoplastic impeller
6 ft. power cord with ground
3/8" O.D. outlet

Applications

High efficiency furnaces
AC equipment
Ice machine
Drinking fountains
Dehumidifiers

BARNES BC SERIES CONDENSATE PUMPS

Barnes BC Series Condensate Pumps

Model Comparison Chart

Model	O.D. outlet	HP	Voltage	Phase	GPH	Max. Head
BC15	3/8"	1/50	115	1	85	15'
BC20S	3/8"	1/30	115	1	110	20'

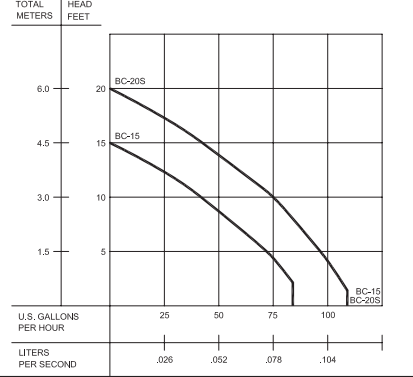

PERFORMANCE CURVES

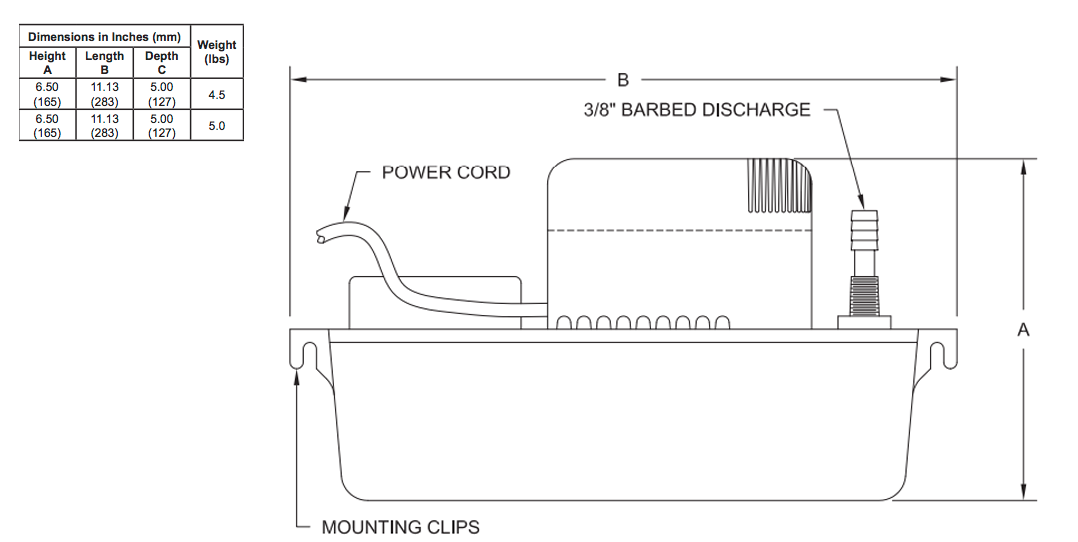

DIMENSIONS

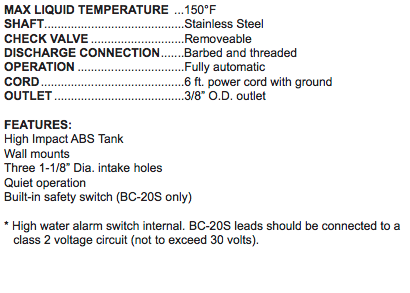

SPECIFICATIONS

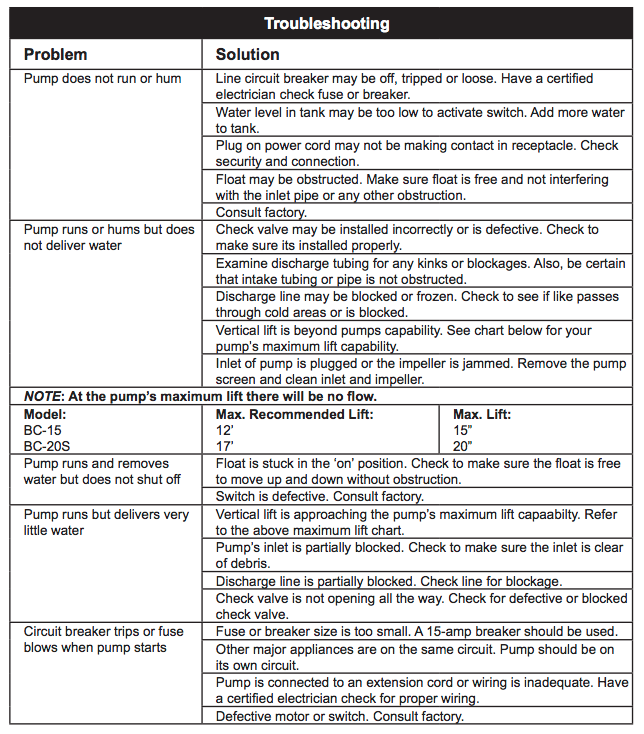

TROUBLESHOOTING

SPECIFICATIONS

Barnes BC Series Condensate Pump Specifications

BROCHURE

Barnes BC Series Condensate Pump Brochure

INSTALLATION MANUAL

Barnes BC Series Condensate Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
