Barnes 4SE-HL Series Sewage Pumps Buyers Guide & Review
The Barnes 4SE-HL series of submersible, non-clog sewage pumps is designed for typical raw sewage applications. This series of pumps has a double seal and can handle spherical solids up to 3 inch in diameter. The 4SE-HL series has torque curved, oil filled, squirrel cage induction motors. Barnes solids handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.

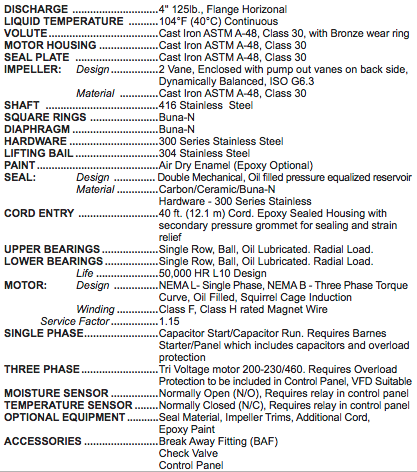

Features
-
4" 125lb, flanged horizonal discharge
-
Motor housing, and seal plate are cast iron ASTM A-48, Class 30
-
Volute is cast iron ASTM A-48, Class 30, with bronze wear ring
-
Impeller has a 2 vane enclosed design with pump out vanes on back side
-
416 stainless steel shaft
-
Buna-N square rings and diaphragm
-
300 series stainless steel hardware
-
304 stainless steel lifting bail
-
Double mechanical seal design made of Carbon/Ceramic/Buna-N with an oil filled pressure equalized reservoir
-
Single row, oil lubricated, radial load upper and lower ball bearings
-
Moisture sensor (Normally Open) and temperature sensor (Normally Closed) require relay in control panel
-
40 ft. cord with epoxy sealed housing with secondary pressure grommet for sealing and strain relief
| BARNES 4SE-HL SERIES SEWAGE PUMPS |

Barnes 4SE-HL Series Sewage Pumps
Model Comparison Chart
