Barnes 3SF-HD Series Fountain Pumps Buyers Guide & Review

Barnes Pumps Buyer Guides

June 18, 2019

Barnes 3SF-HD Series Fountain Pumps Buyers Guide & Review

The Barnes 3SF-HD series of heavy-duty fountain pumps is designed to pump sewage, effluent, or other nonexplosive or noncorrosive wastewater in decorative water displays. This series has a torque curved, oil filled, squirrel cage induction motor.

Features

3" NPT, female, vertical, discharge
Volute, motor housing, impeller, and seal plate are cast iron
Impeller has an open 2 vane design with pump out vanes on back side
416 stainless steel shaft
Buna-N square rings
300 series stainless steel hardware
Inboard single mechanical seal design made of Carbon/Ceramic/Buna-N with an oil filled reservoir
Single row, oil lubricated upper and lower ball bearings
Permanent Split Capacitor (PSC) motor type
Includes thermal overload protection in motor

Applications

Dramatic, decorative water displays

BARNES 3SF-HD SERIES FOUNTAIN PUMPS

Barnes 3SF-HD Series Fountain Pumps

Model Comparison Chart

Model	Discharge (NPT Vertical)	HP	Voltage	Phase	GPM	Max. Head
3SF1524HD	3"	1-1/2	230	1	285	44'
3SF2024HD	3"	2	230	1	318	51'

PERFORMANCE CURVE

DIMENSIONS

SPECIFICATIONS

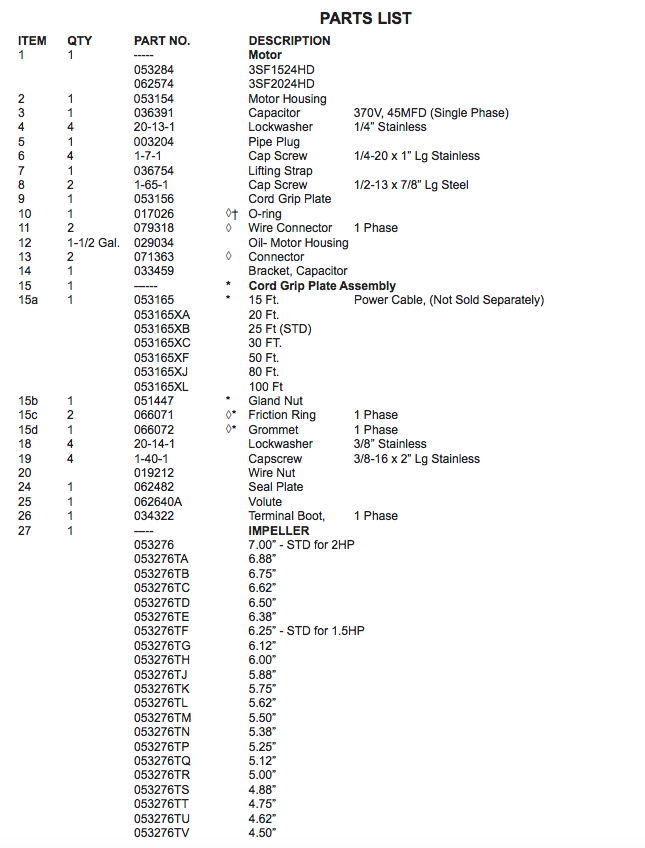

REPAIR PARTS

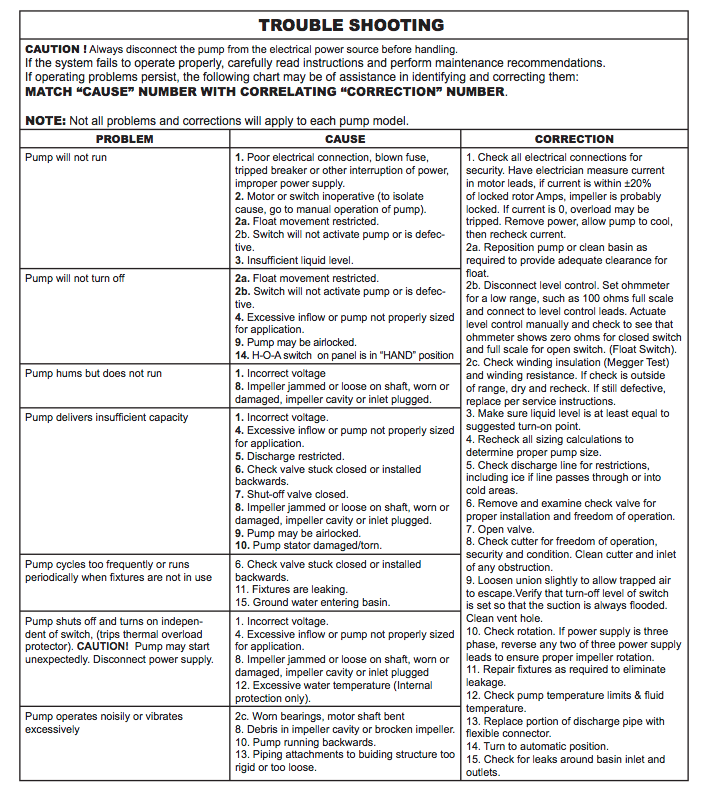

TROUBLESHOOTING

SPECIFICATIONS

Barnes 3SF-HD Series Fountain Pump Specifications

INSTALLATION MANUAL

Barnes 3SF-HD Series Fountain Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
