Barnes 2SEV-L Series Sewage Pumps Buyers Guide & Review

Barnes Pumps Buyer Guides

June 04, 2019

Barnes 2SEV-L Series Sewage Pumps Buyers Guide & Review

The Barnes 2SEV-L series of sewage pumps are of a submersible, non-clog design and ideal for typical raw sewage applications. The 2SEV-L series has a single seal and can handle spherical solids up to 2 inch in diameter. This series also has torque curved, oil filled, squirrel cage induction motors. Barnes solids handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.

Features

2" NPT, female, vertical, bolt-on flanged discharge
Volute, motor housing, impeller and seal plate are cast iron
Impeller has a vortex open design with pump out vanes on back side
416 stainless steel shaft
Buna-N square rings
300 series stainless steel hardware
Single mechanical seal design made of Carbon/Ceramic/Buna-N
Single row, oil lubricated upper and lower ball bearings

BARNES 2SEV-L SERIES SEWAGE PUMPS

Barnes 2SEV-L Series Sewage Pumps

Model Comparison Chart

Model	Discharge (NPT Vertical Flanged)	HP	Voltage	Phase	GPM	Max. Head
2SEV514L	2"	1/2	120	1	135	28'
2SEV524L	2"	1/2	240	1	135	28'
2SEV512L	2"	1/2	120	1	110	38'
2SEV522L	2"	1/2	240	1	110	38'
2SEV544L	2"	1/2	480	3	135	28'
2SEV554L	2"	1/2	600	3	135	28'
2SEV594L	2"	1/2	200/240	3	135	28'
2SEV592L	2"	1/2	200/240	3	110	38'
2SEV552L	2"	1/2	600	3	110	38'
2SEV542L	2"	1/2	480	3	110	38'
2SEV724L	2"	3/4	240	1	160	30'
2SEV1024L	2"	1	240	1	185	36'
2SEV1022L	2"	1	240	1	138	53'
2SEV754L	2"	3/4	600	3	160	30'
2SEV794L	2"	3/4	200/240	3	160	30'
2SEV744L	2"	3/4	480	3	160	30'
2SEV1094L	2"	1	200/240	3	185	36'
2SEV1044L	2"	1	480	3	185	36'
2SEV1054L	2"	1	600	3	185	36'
2SEV1052L	2"	1	600	3	138	53'
2SEV1042L	2"	1	480	3	138	53'
2SEV1092L	2"	1	200/240	3	138	53'
2SEV1522L	2"	1-1/2	240	1	158	65'
2SEV1542L	2"	1-1/2	480	3	158	65'
2SEV1592L	2"	1-1/2	200/240	3	158	65'
2SEV1552L	2"	1-1/2	600	3	158	65'
2SEV2022L	2"	2	240	1	160	75'
2SEV2042L	2"	2	480	3	160	75'
2SEV2092L	2"	2	200/240	3	160	75'
2SEV2052L	2"	2	600	3	160	75'

PERFORMANCE CURVES

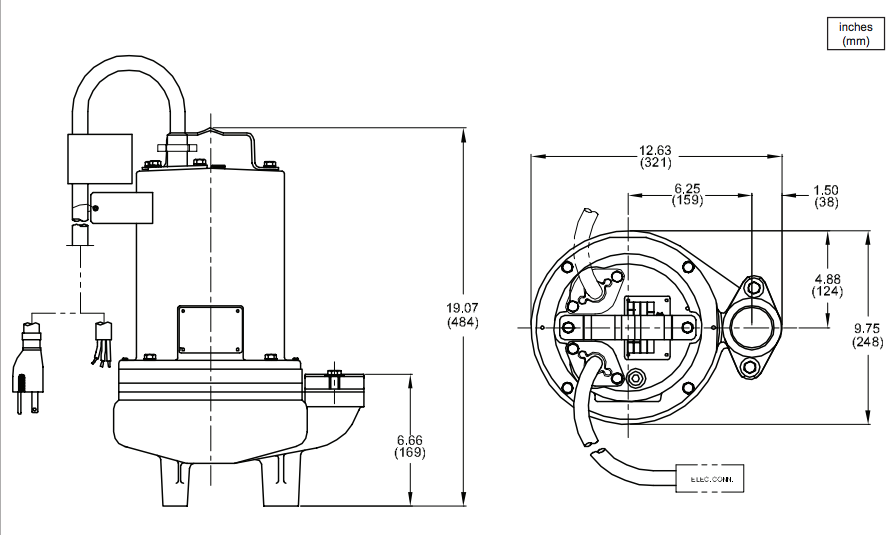

DIMENSIONS

SPECIFICATIONS

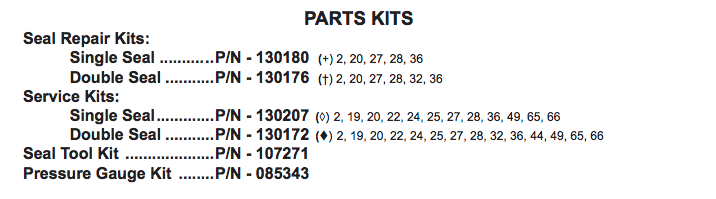

REPAIR KITS

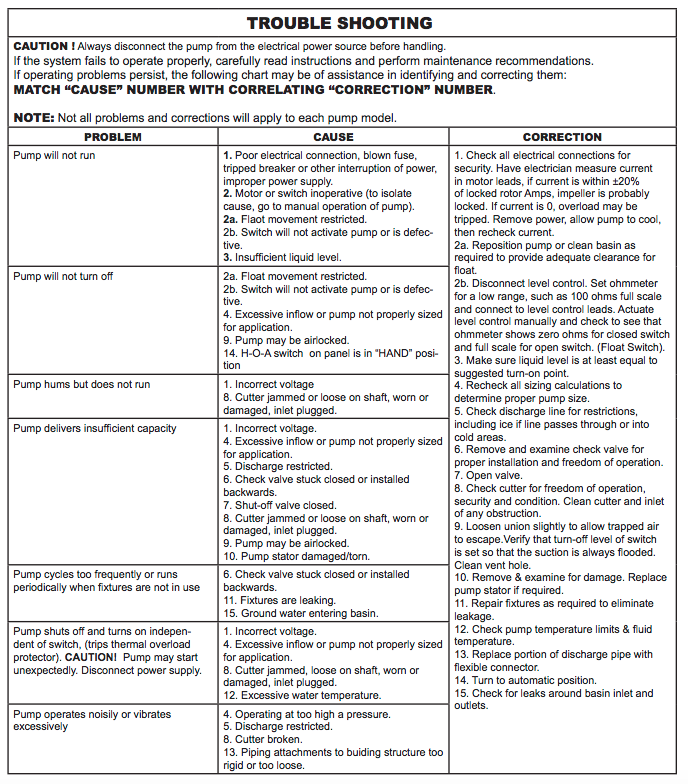

TROUBLESHOOTING

SPECIFICATIONS

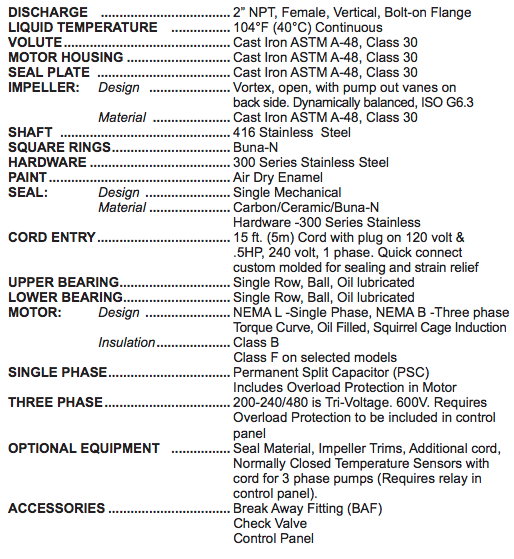

Barnes 2SEV-L Series Sewage Pump Specifications

INSTALLATION MANUAL

Barnes 2SEV-L Series Sewage Pump Installation Manual

Pump Products application engineers are standing by to help you find the right pump, as well as to provide price quotes, stocking availability and shipping information. Call our toll free number 1-800-429-0800 to speak to an expert today.
